SELECT A DIAGRAM

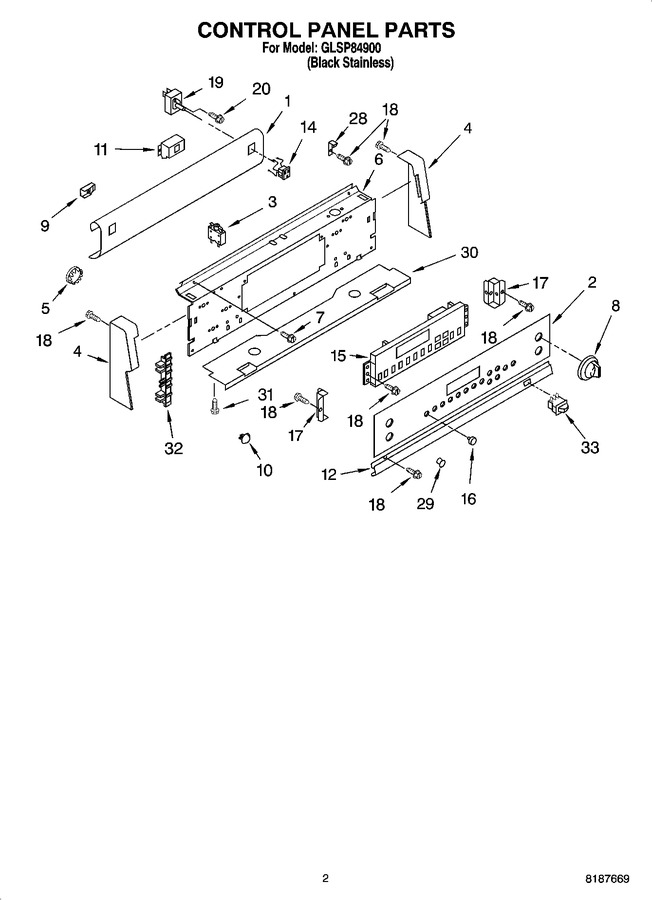

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts


06 - Hidden Bake Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9755481PB		Lamp Cover		Appelez-nous	-
2	9754240		Console-glass (control Panel)		Appelez-nous	-
3	3191072		Breaker, 15amp. (2)		Appelez-nous	-
4	9752423FB		End Cap (right)		Appelez-nous	-
4	9752422FB		End Cap (left)		Appelez-nous	-
5	9780577		Button Plug (8 Mm (2))		Appelez-nous	-
6	9755511		Panel, Control		Appelez-nous	-
7	9780852		Screw, 8-18 X 3/8		Appelez-nous	-
8	9752405FB		Knobs, Control (4)				$ 17.20
9	313102		Light, Indicator (2)				$ 66.48
10	9752854		Spacer, Glass		Appelez-nous	-
11	9755353PB		Box, Outlet		Appelez-nous	-
12	9752441PB		Trim Strip		Appelez-nous	-
14	9755406FB		Outlet, Untimed (2)		Appelez-nous	-
15	9754260CP		Timer   (Replaces: 9754260)		Appelez-nous	-
16	9781954FB		Knob, Timer (17)				$ 14.66
17	9753304		Bracket (2)		Appelez-nous	-
18	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
19	9750644		Infinite Switch (1800w)				$ 53.99
19	WP9750643		Infinite Switch (1500w)   (Replaces: 9750643)			Immediately	$ 145.12
19	WP9755174		Infinite Switch (dual, (2))   (Replaces: 9755174)			Immediately	$ 66.11
20	WP3400882		Screw, 8-32 X 3/16   (Replaces: 3400816)			Immediately	$ 7.55
28	9753017		Clip, Spring (2)		Appelez-nous	-
29	WP9750343		Lens, Light (2)   (Replaces: 9752589)			Immediately	$ 6.00
30	9752439		Base, Console		Appelez-nous	-
31	WP3400832		Screw, 8-18 X 1/2   (Replaces: 3196168)			Immediately	$ 8.18
32	9753076FB		Insert		Appelez-nous	-
33	9750995		Insulation, Control Panel		Appelez-nous	-
33	9754017FB		Switch, Rocker (illuminated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
