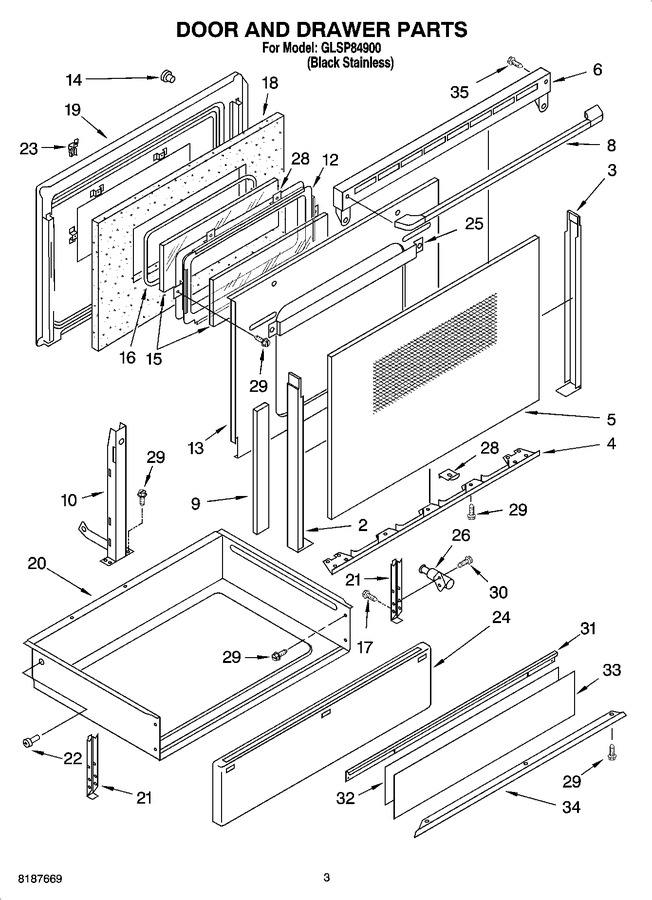

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts


06 - Hidden Bake Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9782003PB		Trim, Door-left		Appelez-nous	-
3	9782004PB		Trim, Door-right		Appelez-nous	-
4	9781209PB		Trim, Door Bottom		Appelez-nous	-
5	9754042		Glass, Door Front		Appelez-nous	-
6	9753498GB		Vent, Door		Appelez-nous	-
6	9781659		Gasket, Door Vent		Appelez-nous	-
6	9781490		Seal, Door Vent Side		Appelez-nous	-
8	9755321FB		Handle, Door		Appelez-nous	-
9	9781449		Gasket, Door Glass		Appelez-nous	-
10	WP9782033		Hinge, Door R Or L   (Replaces: 9782033)			Immediately	$ 231.85
12	9781602		Frame, Glass		Appelez-nous	-
13	9781586		Shield, Door		Appelez-nous	-
14	238614		Bumper, Door   (Replaces: 9780771)				$ 84.79
15	WP9781593		Glass, Pyro (2)   (Replaces: 9781593)				$ 129.28
16	9755177		Seal, Window				$ 76.91
17	9780806		Screw, 4-24 X 3/8		Appelez-nous	-
18	9754006		Insulation, Door		Appelez-nous	-
19	9781600GM		Liner, Door				$ 140.49
20	9750257		Drawer & Roller		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
22	814229		Roller, Drawer   (Replaces: 422604)			Immediately	$ 56.92
23	9750676		Retainer, Door		Appelez-nous	-
24	9782109PB		Front, Drawer		Appelez-nous	-
25	9750693		Heat Channel		Appelez-nous	-
26	WP90296		Clip   (Replaces: 90296)				$ 8.24
26	9751248		Latch, Drawer		Appelez-nous	-
28	9781502		Spacer, Door (8)		Appelez-nous	-
29	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
30	9780272		Screw, 10-16 X 1/2		Appelez-nous	-
31	9750614PB		Trim, Upper		Appelez-nous	-
32	9753329		Spacer		Appelez-nous	-
33	9754062		Panel, Drawer		Appelez-nous	-
34	9750613PB		Trim, Lower		Appelez-nous	-
35	WPW10001180		Screw, 10-24 X 3/8   (Replaces: 9781072)				$ 8.94
