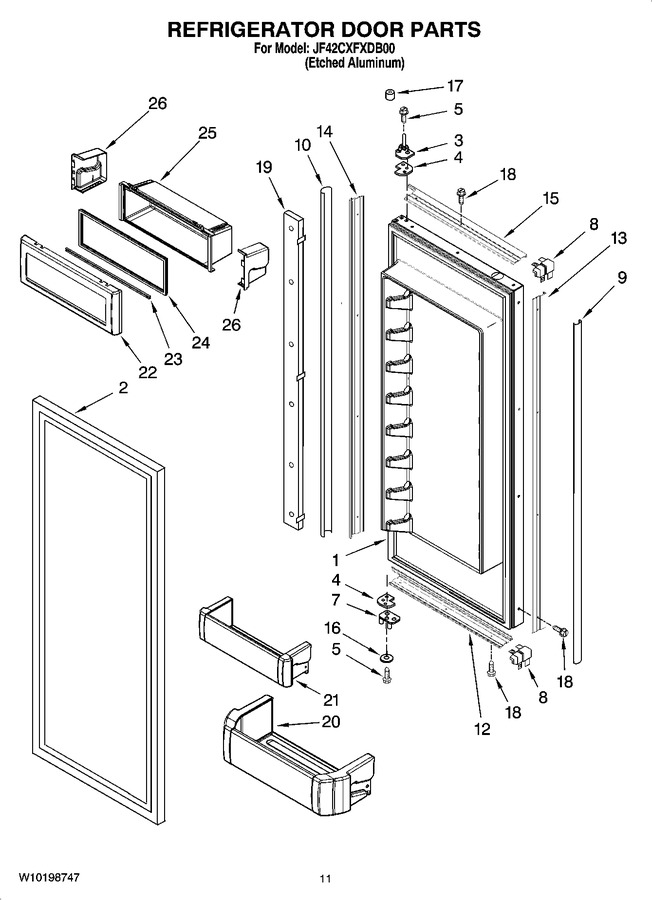

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2307902 | Door, Refrigerator (includes Item 2) (right) |
|
- | |||||
| 1 | 2307903 | Door, Refrigerator (includes Item 2) (left) |
|
- | |||||
| 2 | 8201809 | Gasket, Door (Replaces: 2268265) |
|
Immediately | $ 246.99 | ||||
| 3 | W11673500 | Hinge Assembly, Top (Replaces: 2320642) |
|
Immediately | $ 108.07 | ||||
| 4 | W11673500 | Spacer-hinge (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 5 | W11474472 | Screw, 10-32 X 3/4 (Replaces: 489282) |
|
Immediately | $ 8.02 | ||||
| 7 | 2316752 | Bottom Hinge Assembly (left) |
|
$ 205.74 | |||||
| 7 | 2316751 | Bottom Hinge Assembly (right) |
|
- | |||||
| 8 | 2207457 | Trim, Corner |
|
$ 54.40 | |||||
| 9 | 2309021S | Cover-trim, Side (handle Side) |
|
$ 92.25 | |||||
| 10 | 2309022S | Cover-trim, Side (hinge Side) |
|
$ 113.23 | |||||
| 12 | 2314031S | Trim-door, Bottom |
|
$ 249.07 | |||||
| 13 | 2314030S | Trim-door, Side (handle Side) |
|
$ 265.73 | |||||
| 14 | 2309031S | Trim-door, Side (hinge Side) |
|
$ 383.27 | |||||
| 15 | 2314028S | Trim-door, Top |
|
$ 253.98 | |||||
| 16 | WP2006346 | Washer (Replaces: 2006346) |
|
Immediately | $ 11.20 | ||||
| 17 | W11500952 | Bushing, Top Hinge (Replaces: 2316760) |
|
Immediately | $ 33.09 | ||||
| 18 | WP8281250 | Screw, 8-15 X 1/2 (Replaces: 8281250) |
|
$ 10.88 | |||||
| 19 | 2307938 | Mullion Assembly |
|
$ 144.52 | |||||
| 20 | W10323746 | Shelf, Door (2) (gallon) (Replaces: 2222769) |
|
$ 103.09 | |||||
| 21 | W10323598 | Shelf, Door (4) (Replaces: 2222772) |
|
$ 99.80 | |||||
| 22 | WPW10131132 | Door, Utility Bin (Replaces: W10131132) |
|
$ 72.20 | |||||
| 23 | 2222795 | Rail, Lid |
|
$ 80.10 | |||||
| 24 | WP2222981 | Gasket, Utility Bin (Replaces: 2222981) |
|
$ 204.19 | |||||
| 25 | WPW10323035 | Bin, Utility (Replaces: 2222921) |
|
$ 80.89 | |||||
| 26 | WPW10323172 | End Cap, Utility Bin (right Side) (Replaces: 2222919) |
|
$ 8.19 | |||||
| 26 | WPW10323173 | End Cap, Utility Bin (left Side) (Replaces: 2222920) |
|
$ 8.19 |
