Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2327400 Freezer Door (includes 9) Appelez-nous -
2 2317101 Divider, Basket (2) Appelez-nous -
3 W10665413 Mat, Basket   (Replaces: W10183770) Special Order $ 270.14

4 W10135775 Screw, 5/16 X 3/4 Special Order $ 14.22

5 WP488234 Screw, 8/32 X 1/4   (Replaces: W10135792) Special Order $ 6.74

6 W10109030 Screw Special Order $ 14.62

7 2313999S Trim-door, Side Special Order $ 206.26

8 2313998S Trim-door, Top & Bottom Special Order $ 277.02

9 2309216 Door Gasket, Magnetic Special Order $ 303.57

10 2309033S Cover-trim, Top Special Order $ 81.95

11 2309213S Cover-trim, Side Special Order $ 87.56

13 WP8281250 Screw, 8-15 X 1/2   (Replaces: 8281250) Special Order $ 10.88

14 2327532 Basket Assembly, Freezer Appelez-nous -
15 WP2207454 Nut, Hex   (Replaces: 2207454) Special Order $ 10.64

16 W10001190 Washer Special Order $ 8.38

17 W10135775 Screw, 5/16-24 X 1 (basket To Slide) Special Order $ 14.22

18 2258903 Cap, Door (4) Corner Special Order $ 194.73


    View Diagram in Separate Window     Print Icon   Print Part List

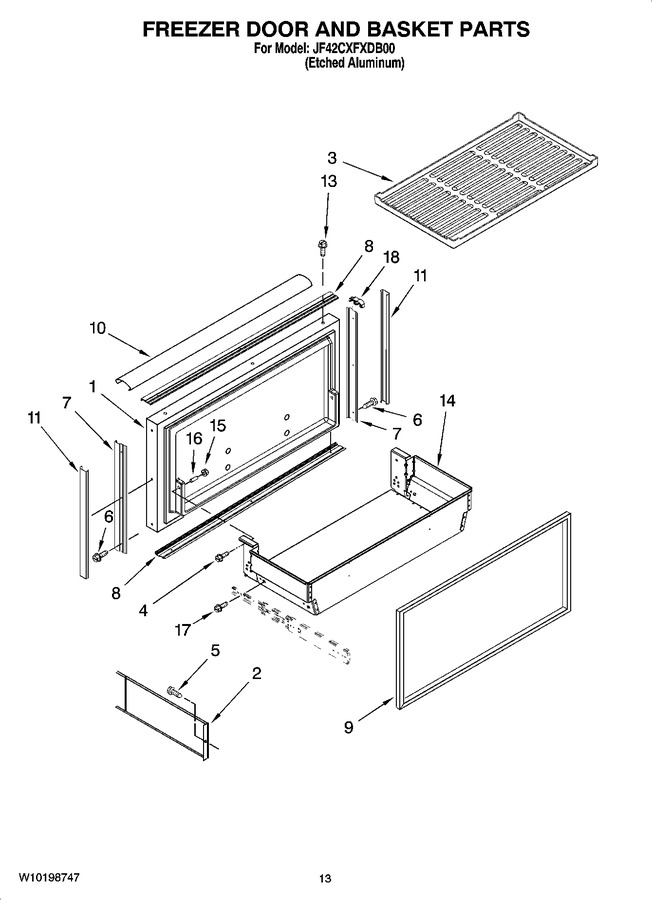

Diagram for JF42CXFXDB00
