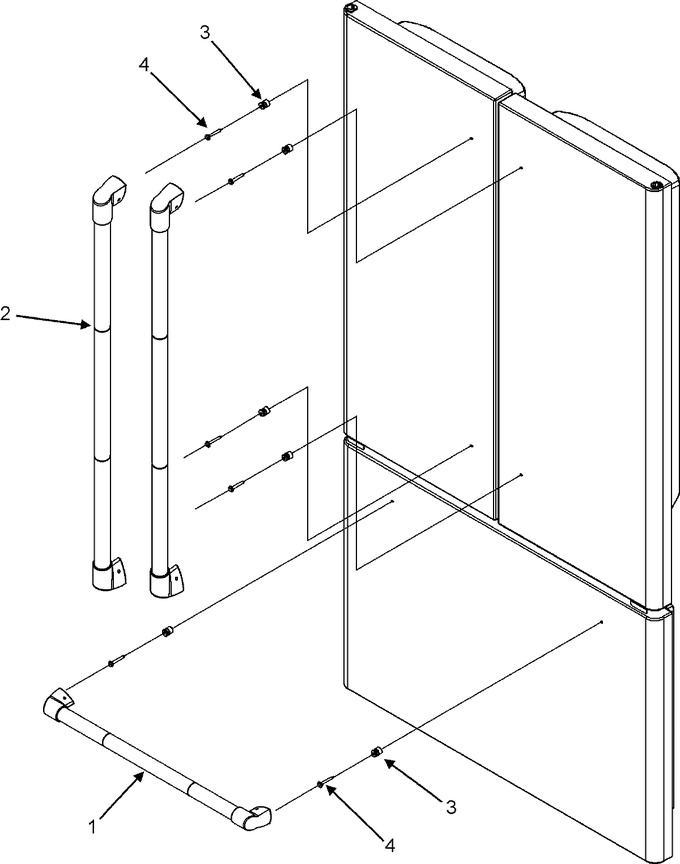

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP12859110		Handle Assy, Fz Door   (Replaces: 12859110)	11			$ 327.58
1	WP12859110		Handle Assy., Door (stnls)   (Replaces: 67004746)	10			$ 327.58
2	WP12859109		Handle Assy, Ref Door   (Replaces: 12859109)	11			$ 320.97
2	WP12859109		Handle Assy., Ref Door (stnls)   (Replaces: 67004747)	10			$ 320.97
3	67006109		Mount, Handle	11	Appelez-nous	-
3	67003114		Mount, Handle	10	Appelez-nous	-
4	WPW10133608		Screw, Handle   (Replaces: W10133608)	11			$ 10.28
4	340184		Screw   (Replaces: 67003115)	10			$ 14.11

    View Diagram in Separate Window       Print Part List
