| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |

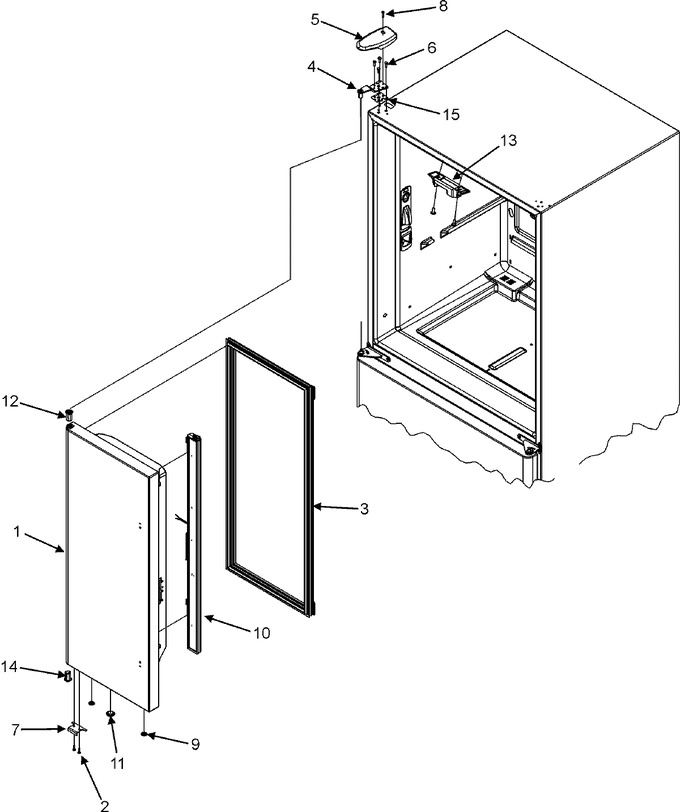

| 1 |
13024008S |
|
Door Assy.,lt Ref Foam (stnls) |
11 |
Appelez-nous
|
- |
|
|
|
| 1 |
67004711 |
|
Door Assy., Lt Ref. (stnls) |
10 |
Appelez-nous
|
- |
|
|
|
| 1 |
W10134275 |
|
Door Assy., Lt Ref. (stnls) |
12 |
Appelez-nous
|
- |
|
|
|
| 2 |
WP98165 |
 |
Screw, Sm (Replaces: M0211018) |
10 |
|
|
$ 8.00 |
|
|
| 3 |
W11368721 |
 |
Gasket, French Door (blk) (Replaces: 67003547) |
10 |
|
Immediately |
$ 169.21 |
|
|
| 4 |
WP12566607ED |
 |
Hinge, Top (blk) (Replaces: 12566603ED) |
10 |
|
|
$ 86.75 |
|
|
| 5 |
12684201B |
|
Cover, Top Hinge (lt-blk) |
10 |
Appelez-nous
|
- |
|
|
|
| 6 |
R9800670 |
|
Screw, Tf (Replaces: M0238731) |
10 |
|
|
$ 9.38 |
|
|
| 7 |
W11708403 |
 |
Stop, Door (blk) (Replaces: 67006276) |
11 |
|
Immediately |
$ 14.05 |
|
|
| 7 |
W11708403 |
|
Stop, Door (blk) (Replaces: 67003780) |
10 |
|
Immediately |
$ 14.05 |
|
|
| 8 |
WP8281196 |
 |
Screw-mach (Replaces: M0202327) |
10 |
|
Immediately |
$ 7.19 |
|
|
| 9 |
67004838 |
 |
Plug, Vent (blk) |
10 |
|
|
$ 10.68 |
|
|
| 10 |
WP12722803B |
 |
Vert Mullion Assy (blk) (Replaces: 67003264) |
10 |
|
Immediately |
$ 206.80 |
|
|
| 10 |
W11311945 |
 |
Screw (Replaces: 67004639) |
10 |
|
|
$ 14.02 |
|
|
| 11 |
A3080001 |
|
Plug, Button (blk) |
10 |
Appelez-nous
|
- |
|
|
|
| 12 |
12395501B |
|
Bushing, Door (blk) |
10 |
Appelez-nous
|
- |
|
|
|
| 13 |
WP67003405 |
 |
Block, Pivot (Replaces: 67003405) |
10 |
|
Immediately |
$ 7.82 |
|
|
| 13 |
W11233072 |
 |
Screw (Replaces: M0214931) |
10 |
|
Immediately |
$ 14.02 |
|
|
| 14 |
WP67002721 |
 |
Bushing, Door (blk) (Replaces: 67002721) |
10 |
|
Immediately |
$ 7.86 |
|
|
| 15 |
12579702 |
|
Shim, Top Hinge |
10 |
Appelez-nous
|
- |
|
|
|
