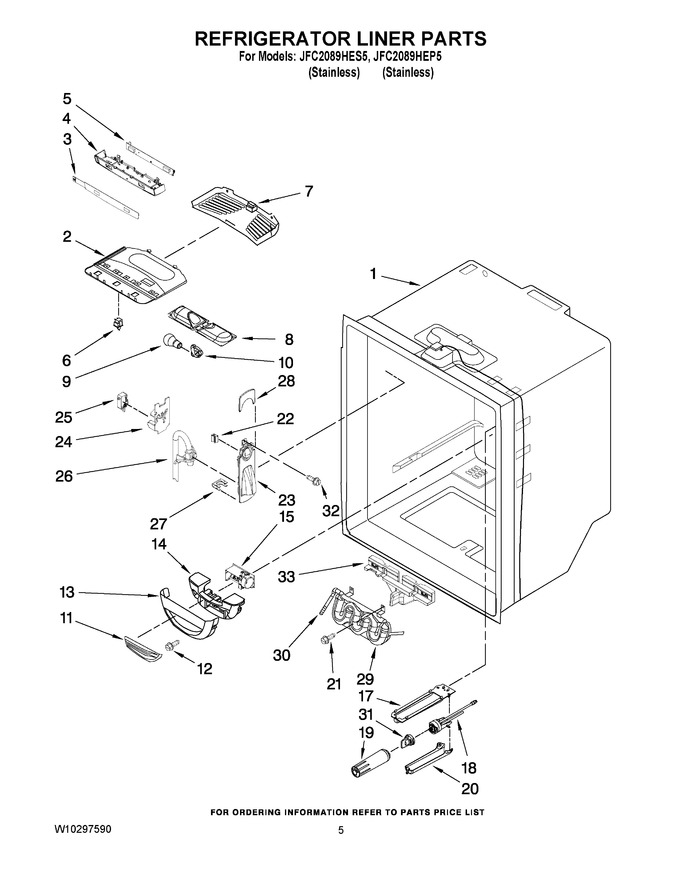

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Asevice Able Part) |
|
- | |||||
| 2 | 12806302 | Module, Light |
|
- | |||||
| 3 | W10269084 | Keyboard |
|
- | |||||
| 4 | W11416469 | Module, Control (Replaces: 12806405) |
|
Immediately | $ 234.84 | ||||
| 5 | WPW10319823 | Board, Control (Replaces: W10217475) |
|
Immediately | $ 302.00 | ||||
| 6 | W11384469 | Switch, Light (2) (Replaces: C3680310V) |
|
Immediately | $ 39.09 | ||||
| 7 | W11284721 | Cover, Light (Replaces: 12806501) |
|
$ 106.02 | |||||
| 8 | 12806601 | Housing, Light (Replaces: 12806601V) |
|
$ 110.20 | |||||
| 9 | W11679940 | Bulb, Light (2) (Replaces: W10194422V) |
|
Immediately | $ 11.30 | ||||
| 10 | W11447232 | Socket, Light (2) (Replaces: 12570701V) |
|
Immediately | $ 13.87 | ||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
Immediately | $ 8.55 | ||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 13.22 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 113.00 | |||||
| 14 | W11750607 | Insulation (Replaces: 13012402) |
|
$ 50.15 | |||||
| 15 | WPW10196393 | Control, Damper (Replaces: W10127429) |
|
Immediately | $ 166.07 | ||||
| 17 | WP67001668 | Plate (Replaces: 12704801) |
|
Immediately | $ 15.95 | ||||
| 18 | W11844302 | Head, Water Filter (Replaces: 12590620) |
|
$ 154.88 | |||||
| 19 | EDR4RXD1B | Filter, Water (Replaces: UKF8001) |
|
Immediately | $ 49.99 | ||||
| 20 | WP12568001 | Cover, Filter (Replaces: 12568001) |
|
Immediately | $ 86.76 | ||||
| 21 | WP67006415 | Screw (2) (Replaces: 12990512) |
|
$ 7.80 | |||||
| 22 | B8390302SP | Clip, Facade (2) |
|
- | |||||
| 23 | 12706909SP | Facade, Disp. |
|
$ 21.04 | |||||
| 24 | 12707303SP | Plate, Switch |
|
$ 80.42 | |||||
| 25 | WP12575501 | Switch, Limit (Replaces: 12575501) |
|
$ 68.90 | |||||
| 26 | W11677725 | Guide, Waterline (Replaces: 12707206SP) |
|
Immediately | $ 24.76 | ||||
| 27 | 67002816 | Clip, Waterline (Replaces: 12251001SP) |
|
$ 19.15 | |||||
| 28 | W11519867 | Facade, Disp (top) (Replaces: 12707005) |
|
Immediately | $ 26.35 | ||||
| 29 | W11229977 | Tank, Water (Replaces: 12706112) |
|
Immediately | $ 101.58 | ||||
| 30 | WP2300868 | Union (Replaces: 61006182) |
|
Immediately | $ 29.05 | ||||
| 31 | W11395888 | Plug, Bypass (Replaces: 12664501SP) |
|
Immediately | $ 50.72 | ||||
| 32 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 33 | WPW10163893 | Insulation, Water Tank (Replaces: W10163893) |
|
$ 91.72 | |||||
| NI | WPW10224292 | Harness, Control (refrigerator) (includes Thermistor) (Replaces: W10224292) |
|
Immediately | $ 128.93 |
