Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13092257SQ Door, Freezer (stainless) Appelez-nous -
2 12850918 Handle, Door (jfc2089hes5) Appelez-nous -
2 WP12859110 Handle, Door (jfc2089hep5)   (Replaces: 12859110) Special Order $ 311.98

3 W10436252 Gasket, Door (black)   (Replaces: W10164041) In-Stock Immediately $ 345.03

4 12945201 Mount, Handle Special Order $ 35.20

5 WPW10133608 Screw, Mount   (Replaces: 12991202) Special Order $ 8.30


    View Diagram in Separate Window     Print Icon   Print Part List

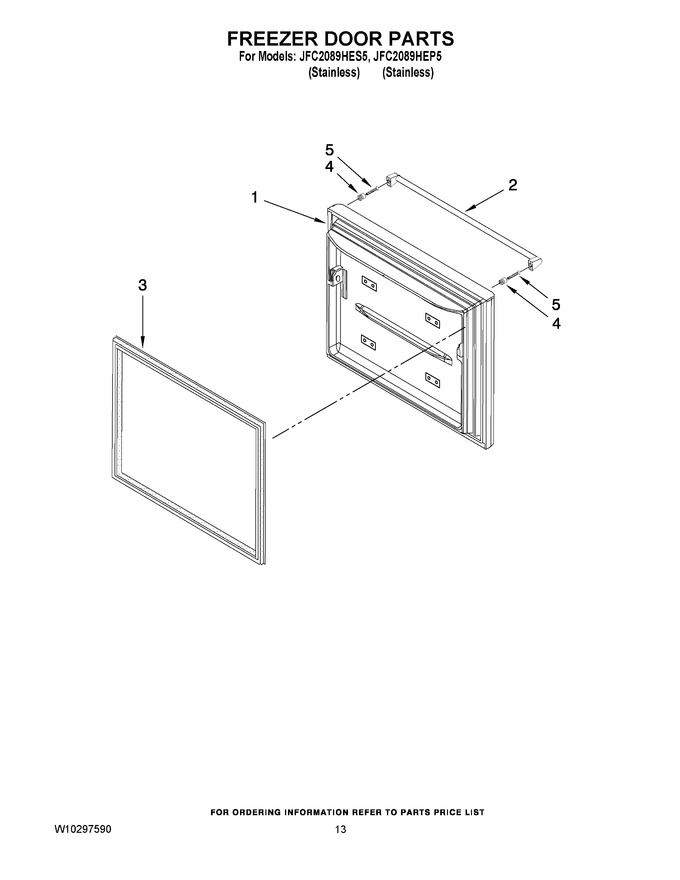

Diagram for JFC2089HEP5
