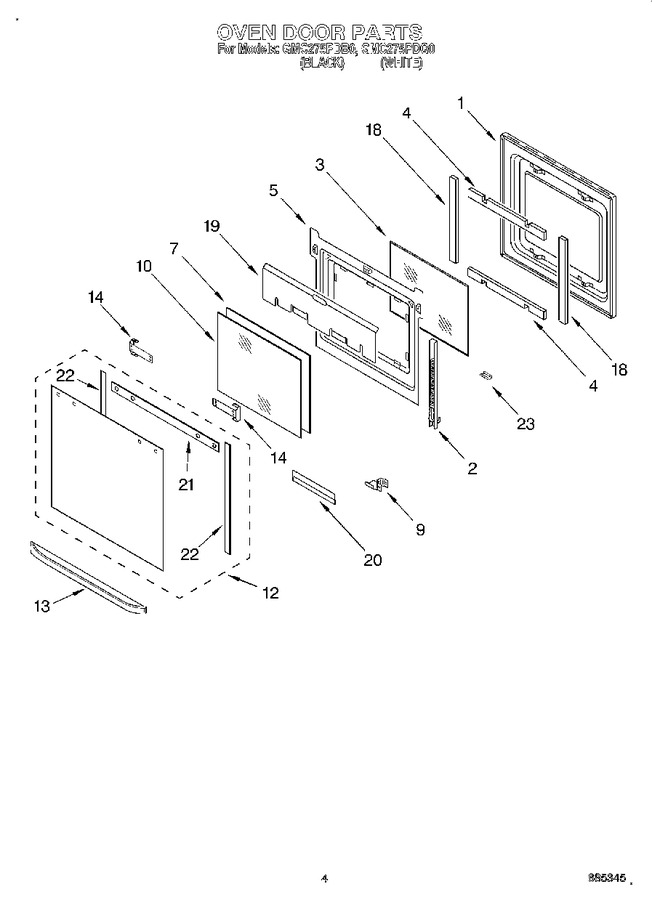

SELECT A DIAGRAM

01 - Oven


02 - Control Panel, Literature


03 - Oven Door


04 - Latch


05 - Internal Oven


06 - Cabinet And Stirrer


07 - Microwave Door


08 - Microwave Compartment


09 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450428		Door Liner		Appelez-nous	-
2	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
2	WP4455524		Hinge, Door   (Replaces: 4451173)			Immediately	$ 78.20
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 168.61
4	4448679		Insulation, Top And Bottom Door		Appelez-nous	-
5	4450422		Retainer, Glass		Appelez-nous	-
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	WP4449257		Glass, Inner   (Replaces: 4449257)			Immediately	$ 208.31
9	4450470		Retainer, Glass		Appelez-nous	-
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
10	WP4449257		Glass, Inner   (Replaces: 4449257)			Immediately	$ 208.31
12	4451212		Door Glass (white Model)		Appelez-nous	-
12	4450689		Door Glass (black Model)		Appelez-nous	-
13	4448405		Door Handle (black Model)		Appelez-nous	-
13	4448406		Handle, Door (white Model)		Appelez-nous	-
14	4450813		Bracket, Handle				$ 24.20
14	W10276642		Screw   (Replaces: 4451040)				$ 6.41
18	W11688413		Insulation, Sides   (Replaces: 4448707)				$ 26.92
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4450361		Shield, Heat		Appelez-nous	-
20	4449031		Retainer, Glass		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
21	4450836		Seal, Door Top		Appelez-nous	-
22	4450838		Seal, Side		Appelez-nous	-
23	WP4449743		Retainer, Clip (screw)   (Replaces: 4449743)				$ 7.55
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
