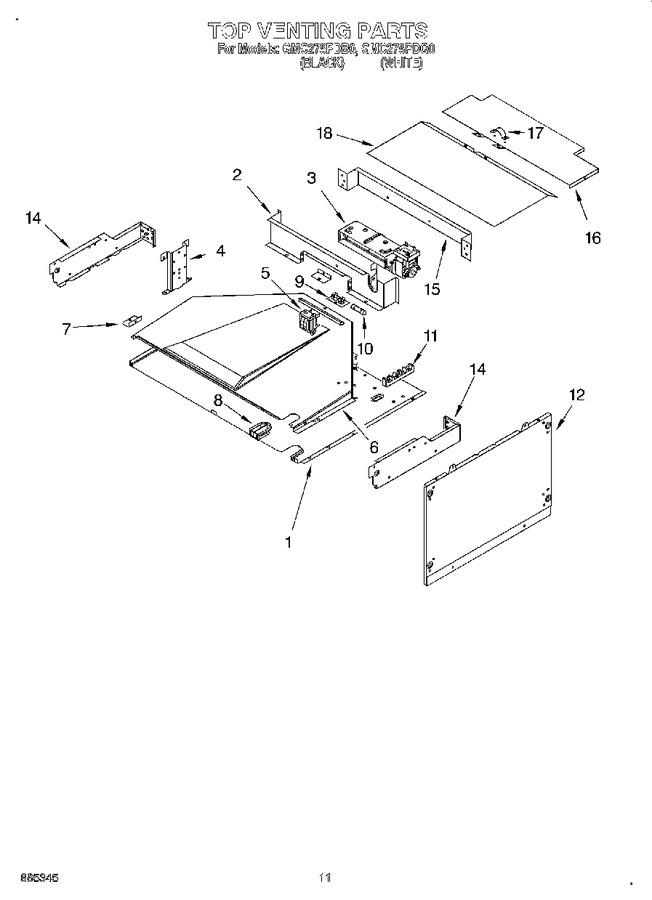

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
1	4450377		Cover, Top		Appelez-nous	-
1	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
2	4448935		Baffle, Blower		Appelez-nous	-
3	4450920		Blower		Appelez-nous	-
3	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
4	4450066		Bracket, Transformer		Appelez-nous	-
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
5	WP9760588		Transformer, (lights)   (Replaces: 4450328)				$ 276.58
6	4450366		Exhaust Duct		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4450027		Bracket, Duct		Appelez-nous	-
8	4449964		Grommet		Appelez-nous	-
8	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
8	WP112432		Nut   (Replaces: 112432)				$ 8.63
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
9	4454949		Holder, Fuse   (Replaces: 4450311)				$ 95.24
10	WPW10017410		Fuse   (Replaces: 309796)			Immediately	$ 22.23
11	WP3387230		Screw   (Replaces: 3196181)			Immediately	$ 8.54
11	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 30.13
12	4450401		Side, Combo		Appelez-nous	-
12	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
12	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
14	W10790240		Side, Control Top (left)   (Replaces: 4448372)				$ 78.41
14	W10755214		Side, Control Top (right)   (Replaces: 4448371)		Appelez-nous	-
14	WP4449809		Side, Control Top (screw)   (Replaces: 4449809)			Immediately	$ 7.55
15	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
15	4450658		Back, Control		Appelez-nous	-
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
16	4450550		Cover, Top Rear				$ 32.95
17	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
17	4448664		Clamp				$ 21.41
18	4450950		Conduit, Combo		Appelez-nous	-
18	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
18	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
18	242831		Wire (14 Ga. 200 C Red)				$ 342.23
18	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
18	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
18	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
18	4378950		Filler Kit (bl)		Appelez-nous	-
18	4378951		Filler Kit (wh)		Appelez-nous	-
18	814381		Kit, Hinge Pin				$ 11.28
18	WP4448950		Screw, Installation   (Replaces: 4448950)				$ 8.16
18	4454871		Harness, Door Switch		Appelez-nous	-
18	4454709		Harness, Latch		Appelez-nous	-
18	4454858		Harness, Main		Appelez-nous	-
18	4450831		Ground (m/w)				$ 7.43
18	4450800		Screw				$ 13.47
18	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
18	4450553		Cover, Top Front		Appelez-nous	-
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
18	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 27.83
18	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
18	261900		Citrine White				$ 59.89
18	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)				$ 59.89
18	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
18	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 63.51
18	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
18	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
18	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
18	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
18	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
18	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
18	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
18	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
