SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts

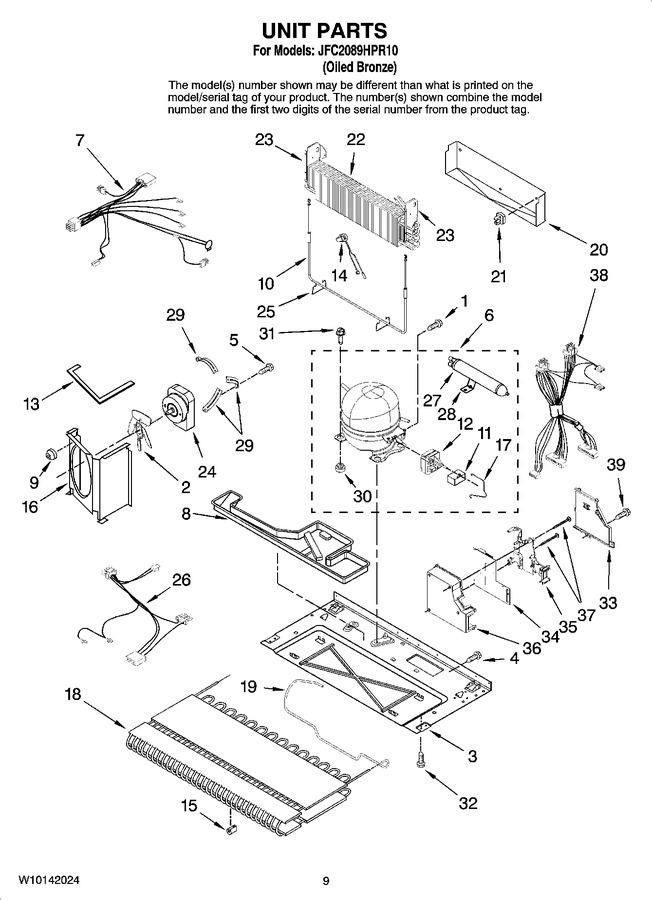

05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw   (Replaces: 67006433)				$ 7.32
2	W10156818		Blade, Fan   (Replaces: 67004952)			Immediately	$ 62.11
3	67005889		Basepan		Appelez-nous	-
4	67006425		Screw (2)			Immediately	$ 6.95
5	WP67004954		Screw (3)   (Replaces: 67004954)				$ 7.79
6	W10160407		Compressor Kit (includes Items 11,12,17,27, & 30)   (Replaces: 12002634)				$ 599.92
7	67005574		Harness, Evap Heater		Appelez-nous	-
8	WP12579803		Pan, Drain   (Replaces: 67007175)				$ 245.45
9	61004743		Grommet (3)				$ 5.51
10	WP67002493		Heater, Defrost   (Replaces: 67002493)			Immediately	$ 146.15
11	W10613606		Capacitor   (Replaces: 67005562)			Immediately	$ 86.59
12	W10613606		Relay Assy. (incl. Capacitor)   (Replaces: 67005560)			Immediately	$ 86.59
13	WP854334		Gasket   (Replaces: 61003210)				$ 13.28
14	WP67003426		Thermostat, Def.   (Replaces: 67003426)			Immediately	$ 68.65
15	67005680		Grommet (6)				$ 21.05
16	12575305		Shroud		Appelez-nous	-
17	67007052		Clip, Capacitor		Appelez-nous	-
18	WP67006131		Condenser   (Replaces: 67006131)				$ 366.74
19	WP12866903		Tube, Discharge   (Replaces: 67004700)			Immediately	$ 133.53
20	W11547653		Tray, Drip   (Replaces: 67002490)				$ 54.30
21	10623002		Clip, Evaporator				$ 11.53
22	12002041		Evaporator Kit (incl. Evap., Heat Shield, & Instr. Sheet)				$ 348.63
23	67001084		Dam (right Side)		Appelez-nous	-
23	67001083		Dam (left Side)		Appelez-nous	-
24	W11613295		Motor, Fan   (Replaces: 67004432)			Immediately	$ 136.84
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 141.12
26	67005435		Harness, Mc				$ 31.73
27	WPB2150504		Drier   (Replaces: B2150504)				$ 130.46
28	10547003		Clip, Drier		Appelez-nous	-
29	WP67004953		Bracket, Fan Motor   (Replaces: 67004953)				$ 68.83
30	WPW10169124		Grommet (4)   (Replaces: 67003493)			Immediately	$ 7.19
31	12846902		Screw (3)   (Replaces: 67006432)				$ 12.99
32	12992101		Screw (4)   (Replaces: 67006573)		Appelez-nous	-
33	67005421		Cover, Hv Box				$ 64.83
34	12782025		Board, Hv Control (inc. Inst. Sheet)		Appelez-nous	-
35	67005418		Spacer, Hv Box		Appelez-nous	-
36	67004969		Box, Hv		Appelez-nous	-
37	67006550		Screw (2)		Appelez-nous	-
38	67005419		Harness, Hv				$ 126.27
39	67006615		Screw, Cover		Appelez-nous	-
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	12658531CQ		Door, Refrigerator (bisque)   (Replaces: 67004505)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
