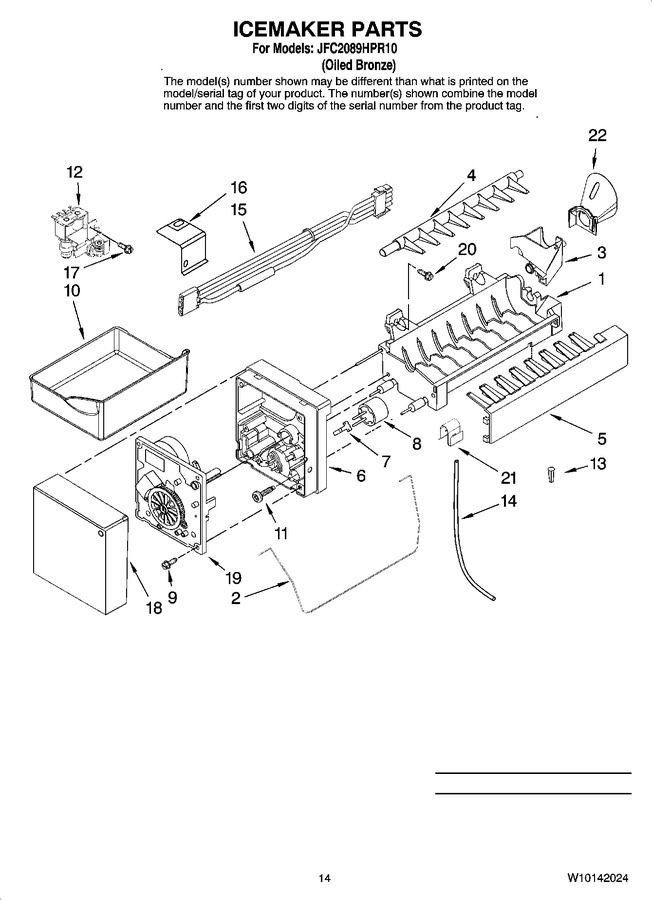

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10190929		Mold & Heater Assembly   (Replaces: 628228)				$ 233.15
2	WP67004028		Arm, Shutoff   (Replaces: 67004028)			Immediately	$ 95.92
3	W10122561		Cup, Fill   (Replaces: 628515)				$ 29.16
4	WP627843		Ejector   (Replaces: 95101-1)				$ 87.78
5	WP2182124		Ice Stripper   (Replaces: 95102-1)				$ 90.35
6	WP2195914		Support, Housing   (Replaces: 2194712)				$ 109.80
7	WP2315522		Retainer, Thermostat   (Replaces: 95104-1)				$ 11.60
8	WP627985		Thermostat   (Replaces: 95092-1)				$ 114.64
9	WP681249		Screw (3)   (Replaces: 95106-1)			Immediately	$ 8.25
10	WP67001255		Pan, Ice   (Replaces: 67001255)				$ 213.23
11	8533917		Screw (2)				$ 14.04
12	WP67006531		Valve, Water Inlet   (Replaces: 67006531)			Immediately	$ 167.68
13	WPA3223101		Insert, Tube   (Replaces: A3223101)			Immediately	$ 8.21
14	WPB5705307		Tubing, Plastic   (Replaces: 67003729)				$ 13.05
15	WPD7813010		Harness, Ice Maker   (Replaces: 67006614)			Immediately	$ 73.97
16	WP2256087		Bracket, Icemaker   (Replaces: 67002823)				$ 97.65
17	WP489128		Screw   (Replaces: 67006662)				$ 11.40
18	WPW10289690		Cover   (Replaces: 67004710)			Immediately	$ 8.82
19	8201515		Module Assembly   (Replaces: 626678)			Immediately	$ 141.64
20	WP98165		Screw (3)   (Replaces: 67006287)				$ 8.57
21	WP628379		Clip, Fuse   (Replaces: B8389801)				$ 11.10
22	12918001		Funnel, Fill Tube   (Replaces: 67005603)			Immediately	$ 13.03
100	4317943		Icemaker Assembly			Immediately	$ 183.45
NI	833938		Kit, Terminal Connector				$ 8.47
NI	542639		Cement, Alumilastic (1-1/4 Oz.)		Appelez-nous	-
NI	WP542638		Grease, Silicone (1/2 Oz)   (Replaces: 542638)			Immediately	$ 12.78
NI	WP503695		Cork Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
NI	WP505587		Sealer, Mastic (1 Qt.)   (Replaces: 505587)			Immediately	$ 182.65
NI	876370		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
NI	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
NI	10244904		Coupling				$ 25.37
NI	W10134193		Touch-up Paint (oiled Bronze)				$ 31.41
NI	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
NI	479502		Tape, Vinyl(3/4 X 108``)				$ 66.77
NI	876370		Kit, Insulation (2 Pcs. X 3`` X 24``x 48``)				$ 243.14
NI	876029		Kit, Foam Slab (30`` X 32-1/2`` X 1-1/2``)		Appelez-nous	-
NI	01300019EA		Cleaner, Stnls Steel Magic   (Replaces: 20000008)			Immediately	$ 23.63
NI	606755		Bag, Insulation(36-5/8`` X 46``)				$ 82.37
NI	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
NI	1117510		Torx Key				$ 5.84
