SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts

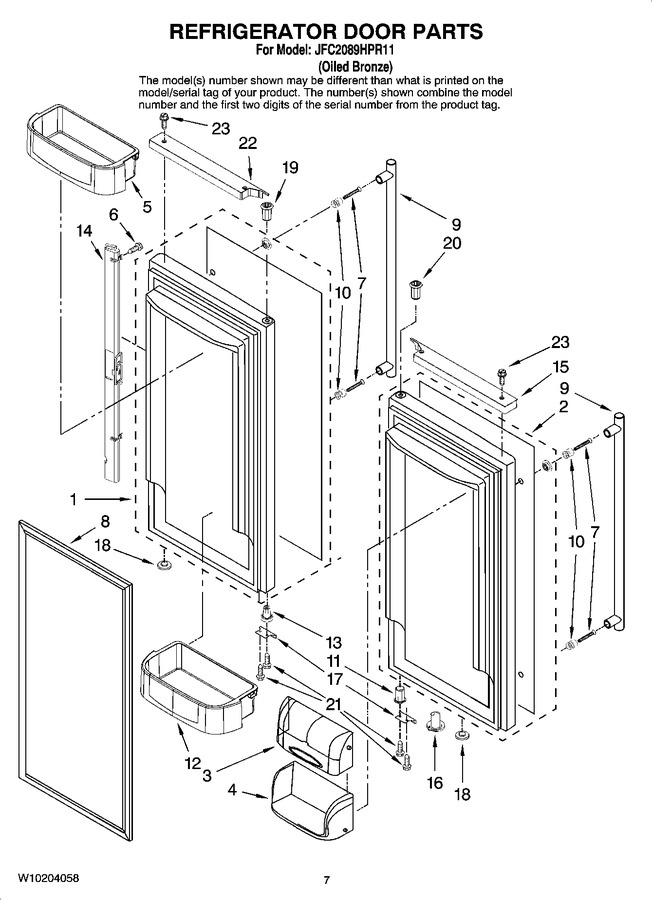

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10143255		Door, Left (oiled Bronze)		Appelez-nous	-
2	W10143254		Door, Right (oiled Bronze)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 67003637)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 83.82
5	67004748		Bin, Shelf (3) (medium)				$ 83.16
6	W11311945		Screw   (Replaces: 67006786)				$ 14.02
7	WPW10133608		Screw   (Replaces: W10133608)				$ 8.30
8	W11368721		Gasket, Door (2) (black)   (Replaces: 12723206B)			Immediately	$ 169.21
9	WP12850910		Door Handle (stainless)   (Replaces: 12850910)				$ 275.89
10	67006109		Mount, Handle		Appelez-nous	-
11	WP67002731		Bushing, Door (bottom Right)   (Replaces: 67002731)			Immediately	$ 7.85
12	67004749		Bin, Shelf (2) (gallon)				$ 85.77
13	WP67002721		Bushing, Door (bottom Left)   (Replaces: 67002721)			Immediately	$ 7.86
14	WP12722803B		Mullion, Door (black)   (Replaces: 67003264)			Immediately	$ 206.80
15	67005569		Extension, Door (right-black)		Appelez-nous	-
16	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 86.02
17	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.05
18	67004838		Plug, Button (black)				$ 10.68
19	12395501B		Bushing, Door Upper Left (black)		Appelez-nous	-
20	67004978		Bushing, Door (upper Right) (black)				$ 21.05
21	WP98165		Screw   (Replaces: 67006287)				$ 8.00
22	67005567		Extension, Door (left-black)		Appelez-nous	-
23	340184		Screw, Extension   (Replaces: 67006679)				$ 13.44

    View Diagram in Separate Window       Print Part List
