SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts

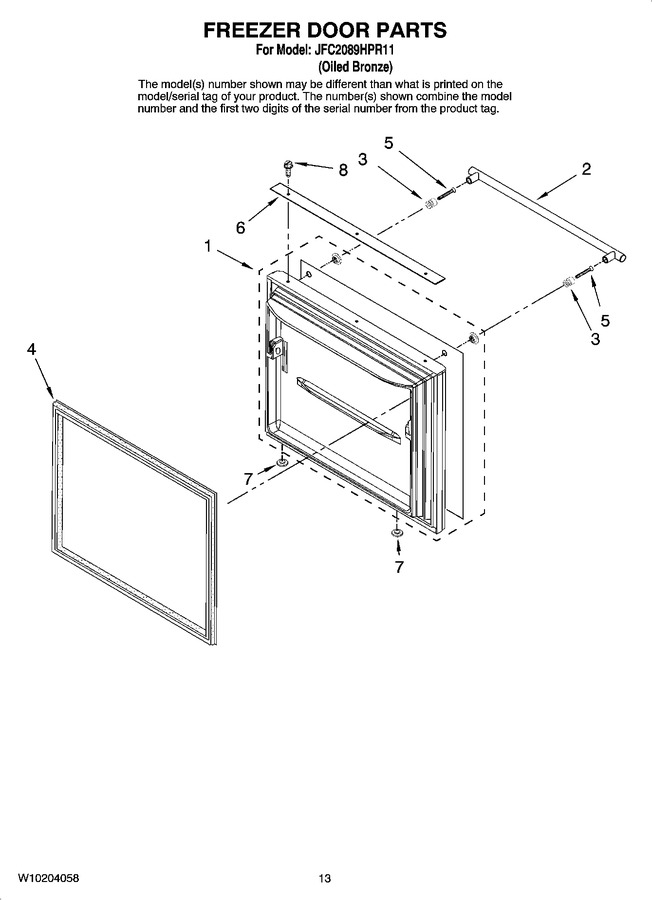

07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10204057		Door, Freezer (oiled Bronze)		Appelez-nous	-
2	WP12850909		Handle (stainless)   (Replaces: 12850909)				$ 278.06
3	67006109		Mount, Handle		Appelez-nous	-
4	W10436252		Gasket, Door (black)   (Replaces: W10131754)			Immediately	$ 345.03
5	WPW10133608		Screw   (Replaces: W10133608)				$ 8.30
6	67005571		Extension, Door (black)		Appelez-nous	-
7	67004838		Plug, Button (2) (black)				$ 10.68
8	WP12990902		Screw (3)   (Replaces: 67007042)				$ 15.14

    View Diagram in Separate Window       Print Part List
