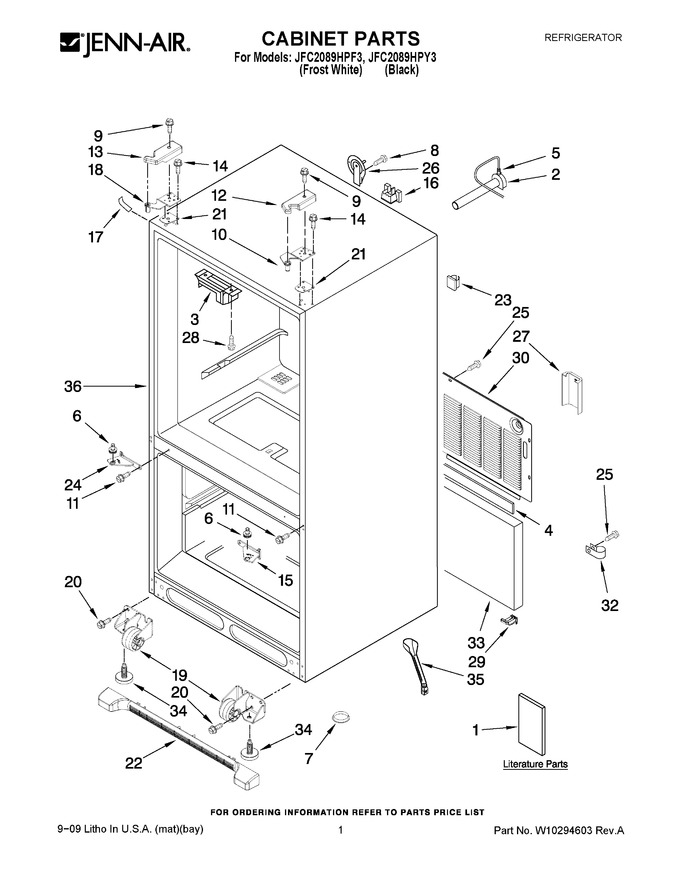

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10215641		Tag, Energy		Appelez-nous	-
1	W10137647		Owners Manual		Appelez-nous	-
1	W10238847		Tech Sheet		Appelez-nous	-
2	W11176463		Elbow, Fill Tube   (Replaces: 10463203SP)			Immediately	$ 119.86
3	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 8.21
4	B5759649		Gasket		Appelez-nous	-
5	WPM0114003		Clip, Speed   (Replaces: M0114003SP)				$ 11.60
6	WP67006642		Pin, Center Hinge   (Replaces: 10351006)				$ 8.78
7	A3076901		Plug-button				$ 5.70
8	WP98165		Screw   (Replaces: 12990504)				$ 8.57
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
10	12626910ED		Hinge, Top Right				$ 124.87
11	W11573362		Screw (6)   (Replaces: 12992201)				$ 14.72
12	12629801W		Cover, Right Hinge (white)				$ 24.68
12	12629801B		Cover, Right Hinge (black)				$ 25.13
13	W10217484		Cover, Left Hinge (white)				$ 33.55
13	W10217485		Cover, Left Hinge (black)				$ 22.72
14	WP489349		Screw (6)   (Replaces: 12992403)			Immediately	$ 8.43
15	12692301ED		Hinge, Center (rt) (black)		Appelez-nous	-
15	12692301WD		Hinge, Center (rt) (white)				$ 60.43
16	12777701		Block, Fill Tube				$ 7.17
17	67003485		Cover, Corner (2) (black)   (Replaces: 12587703B)			Immediately	$ 22.14
17	12587703W		Cover, Corner (2) (white)				$ 22.90
18	12626911ED		Hinge, Top Left				$ 89.05
19	W11820445		Roller Assy.(front) (right)   (Replaces: W10130459)			Immediately	$ 37.35
19	W11820444		Roller Assy.(front) (left)   (Replaces: W10130460)			Immediately	$ 37.35
20	67006564		Screw (8)   (Replaces: 12991302)			Immediately	$ 8.15
21	12579702		Shim, Hinge		Appelez-nous	-
22	WPW10534153		Grille, Toe (black)   (Replaces: W10244561)				$ 154.57
22	WPW10534154		Grille, Toe (white)   (Replaces: W10244559)				$ 153.66
23	WPM0104106		Clip (2)   (Replaces: M0104106)				$ 8.17
24	12692301WD		Hinge, Center (lt) (white)				$ 60.43
24	12692301ED		Hinge, Center (lt) (black)		Appelez-nous	-
25	67006425		Screw (10)   (Replaces: 12990511)			Immediately	$ 7.30
26	12726003		Cover, Water Line				$ 19.19
27	W10208593		Guard, Water Valve				$ 15.71
28	WP7101P126-60		Screw (2)   (Replaces: 12990303)			Immediately	$ 8.36
29	12831101		Sweep, Dual Tube				$ 13.03
30	WPW10211855		Cover, Unit   (Replaces: W10211855)				$ 207.99
32	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 11.54
33	12820505		Insulation, Sound				$ 71.70
34	WPW10141622		Brake, Foot   (Replaces: W10141622)			Immediately	$ 8.24
35	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
36	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
