SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts

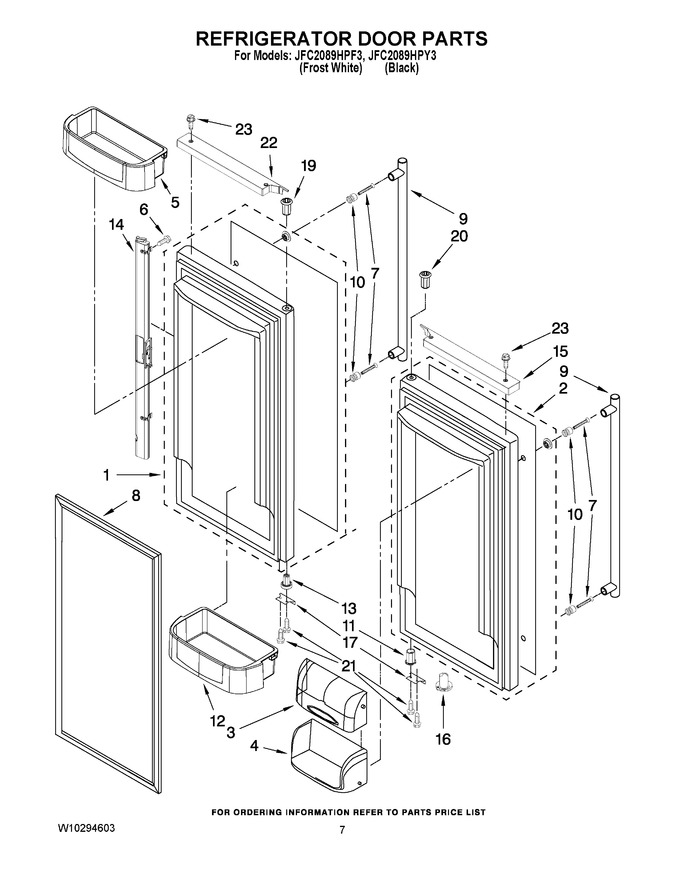

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12894208F		Door, Left (white)		Appelez-nous	-
1	12894208YQ		Door, Left (black)				$ 481.45
2	12894207YQ		Door, Right (black)				$ 452.85
2	12894207F		Door, Right (white)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	67004748		Bin, Shelf (3) (medium)   (Replaces: 12801904)			Immediately	$ 87.32
6	W11311945		Screw   (Replaces: 12990204)				$ 14.72
7	WPW10133608		Screw   (Replaces: 12991202)				$ 10.28
8	W10830189		Gasket, Door (2) (white)   (Replaces: W10163894)			Immediately	$ 228.91
8	W11368721		Gasket, Door (2) (black)   (Replaces: W10163895)			Immediately	$ 169.21
9	12850919		Door Handle (stainless)				$ 37.02
10	12945201		Mount, Handle				$ 35.20
11	WP67002731		Bushing, Door Bottom Right (black)   (Replaces: 12028601B)			Immediately	$ 8.24
11	12028601W		Bushing, Door Bottom Right (white)				$ 24.03
12	67004749		Bin, Shelf (2) (gallon)   (Replaces: 12840002)				$ 90.06
13	WP67002721		Bushing, Door Bottom Left (black)   (Replaces: 12699301B)			Immediately	$ 8.25
13	67002722		Bushing, Door Bottom Left (white)   (Replaces: 12699301W)				$ 22.17
14	WP12722803W		Mullion, Door (white)   (Replaces: 12722803W)			Immediately	$ 261.21
14	WP12722803B		Mullion, Door (black)   (Replaces: 12722803B)			Immediately	$ 206.80
15	12881001B		Extension, Door (right) (black)				$ 49.80
15	12881001W		Extension, Door (right) (white)		Appelez-nous	-
16	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 90.32
16	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 8.15
17	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 69.29
17	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 14.75
19	12395501B		Bushing, Door Upper Left (black)		Appelez-nous	-
19	12395501W		Bushing, Door Upper Left (white)		Appelez-nous	-
20	67004978		Bushing, Door Upper Right (black)   (Replaces: 10961006B)				$ 22.10
20	WP67004977		Bushing, Door Upper Right (white)   (Replaces: 10961006W)				$ 8.20
21	WP98165		Screw   (Replaces: 12990504)				$ 8.57
22	12881002W		Extension, Door (left-black) (white)		Appelez-nous	-
22	12881002B		Extension, Door (left-black) (black)				$ 26.55
23	340184		Screw, Extension   (Replaces: 12990509)				$ 14.11

    View Diagram in Separate Window       Print Part List
