| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP12850910 |
 |
Handle Assy., Ref Door (stnls) (Replaces: 67004780) |
10 |
|
|
$ 275.89 |
|
|
| 2 |
340184 |
 |
Screw (Replaces: 67003115) |
10 |
|
|
$ 13.44 |
|
|
| 3 |
67003114 |
|
Mount, Handle |
10 |
Appelez-nous
|
- |
|
|
|
| 4 |
67003113 |
|
Spacer, Handle |
10 |
Appelez-nous
|
- |
|
|
|
| 5 |
67005431 |
|
Trim, Top Lh French Dr |
10 |
Appelez-nous
|
- |
|
|
|
| 6 |
67005448 |
|
Trim, Top Rh French Dr |
10 |
Appelez-nous
|
- |
|
|
|
| 7 |
W11245710 |
|
Screw, Sm (stnls) (Replaces: M0210417) |
10 |
|
Immediately |
$ 14.05 |
|
|
| 8 |
67005698 |
|
Extension, Door (blk) |
10 |
Appelez-nous
|
- |
|
|
|
| 9 |
WP489474 |
 |
Screw 1`` (Replaces: M0211021) |
10 |
|
Immediately |
$ 7.97 |
|
|
| 10 |
67002435 |
|
Trim, Vertical (lt-stnls) |
10 |
Appelez-nous
|
- |
|
|
|
| 11 |
67002201 |
|
Trim,vertical (rt-stnls)xx |
10 |
Appelez-nous
|
- |
|
|
|
| 12 |
67005699 |
|
Clip, Vert Trim |
10 |
Appelez-nous
|
- |
|
|
|
| 13 |
WP489399 |
 |
Screw, Se (Replaces: M0232929) |
10 |
|
|
$ 6.95 |
|
|
| 14 |
67002451 |
|
Clip |
10 |
|
|
$ 8.44 |
|
|
| 15 |
WP489399 |
|
Screw, Se (Replaces: M0232929) |
10 |
|
|
$ 6.95 |
|
|
| 16 |
67005432 |
|
Trim, Bot Lh French Dr |
10 |
Appelez-nous
|
- |
|
|
|
| 17 |
67005447 |
|
Trim, Bot Rh French Dr |
10 |
Appelez-nous
|
- |
|
|
|
| 18 |
W11245710 |
|
Screw, Sm (stnls) (Replaces: M0210417) |
10 |
|
Immediately |
$ 14.05 |
|
|
| 19 |
WP12850909 |
|
Handle Assy., Door (stnls) (Replaces: 67004779) |
10 |
|
|
$ 278.06 |
|
|
| 20 |
67002252 |
|
Trim, Door Top (stnls) |
10 |
Appelez-nous
|
- |
|
|
|
| 21 |
67002194 |
|
Trim, Door Bottom (stnls) |
10 |
Appelez-nous
|
- |
|
|
|
| 22 |
W11245710 |
|
Screw, Sm (stnls) (Replaces: M0210417) |
10 |
|
Immediately |
$ 14.05 |
|
|
| 23 |
67002995 |
|
Trim, Fz Door Side (stnls) |
10 |
Appelez-nous
|
- |
|
|
|

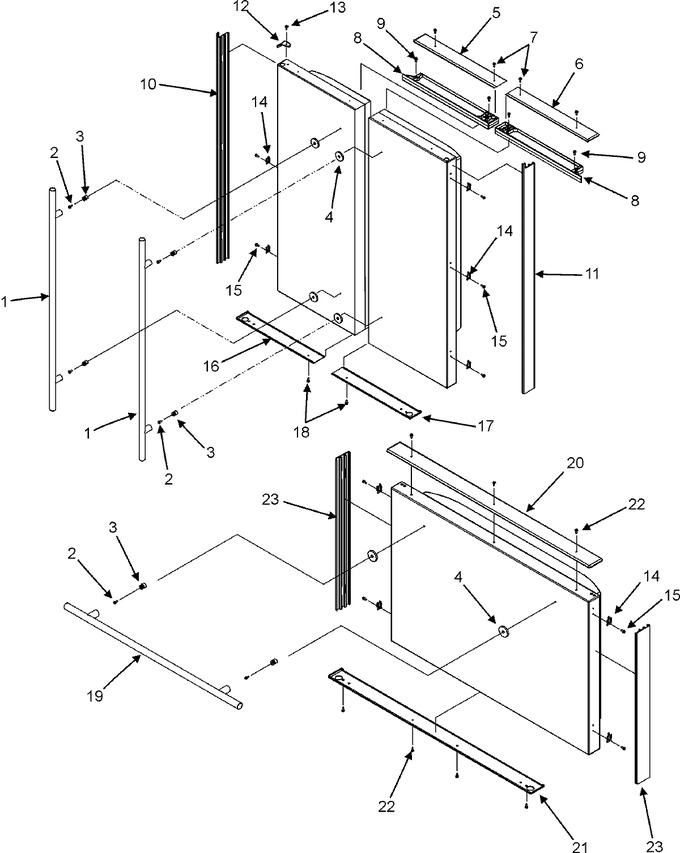

View Diagram in Separate Window
