SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assembly


05 - Evaporator Area & Rollers


06 - Freezer Door


07 - Handles & Trim


08 - Ice Maker


09 - Interior Cabinet/toe Grille/frz Shelves


10 - Left Refrigerator Door


11 - Pantry Assembly


12 - Ref Dr Storage & Center Hinges


13 - Refrigerator Shelves


14 - Right Refrigerator Door


15 - Supplemental Information


16 - Water Dispenser/water Tank/water Filter


17 - Wiring Information (series 10)


18 - Wiring Information (series 11)

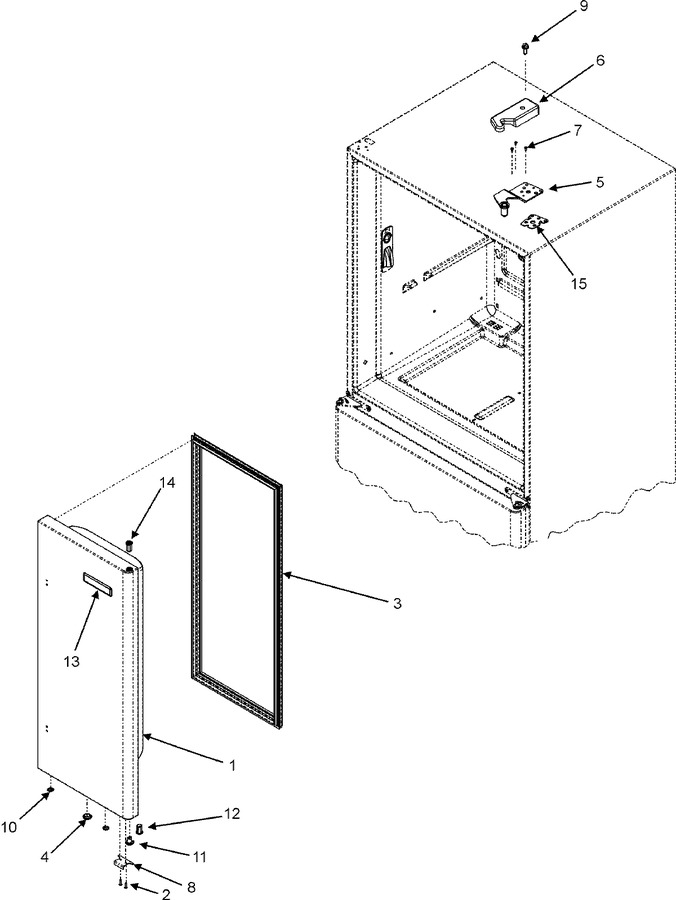

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10133822		Door Assy., Rt Ref. Foam (blk)	11	Appelez-nous	-
1	67005703		Door Assy., Rt Ref. Foam (blk)	10	Appelez-nous	-
2	WP98165		Screw, Sm   (Replaces: M0211018)	10			$ 8.00
3	W11368721		Gasket, French Door (blk)   (Replaces: 67003547)	10		Immediately	$ 169.21
4	A3080001		Plug, Button (blk)	10	Appelez-nous	-
5	12626910ED		Hinge, Top (rt-blk)   (Replaces: 12626901ED)	10			$ 118.92
6	12629801B		Cover, Top Hinge (rt-blk)	10			$ 25.13
7	R9800670		Screw, Tf   (Replaces: M0238731)	10			$ 9.38
8	W11708403		Stop, Door (blk)   (Replaces: 67003780)	10		Immediately	$ 14.05
9	WP8281196		Screw-mach   (Replaces: M0202327)	10		Immediately	$ 7.19
10	67004838		Plug, Vent (blk)	10			$ 10.68
11	WP67003639		Closure, Door (blk)   (Replaces: 67003639)	10			$ 86.02
12	WP67002731		Bushing, Door (blk)   (Replaces: 67002731)	10		Immediately	$ 7.85
13	67004548		Nameplate	10	Appelez-nous	-
14	67004978		Bushing, Door (blk)	10			$ 21.05
15	12579702		Shim, Top Hinge	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
