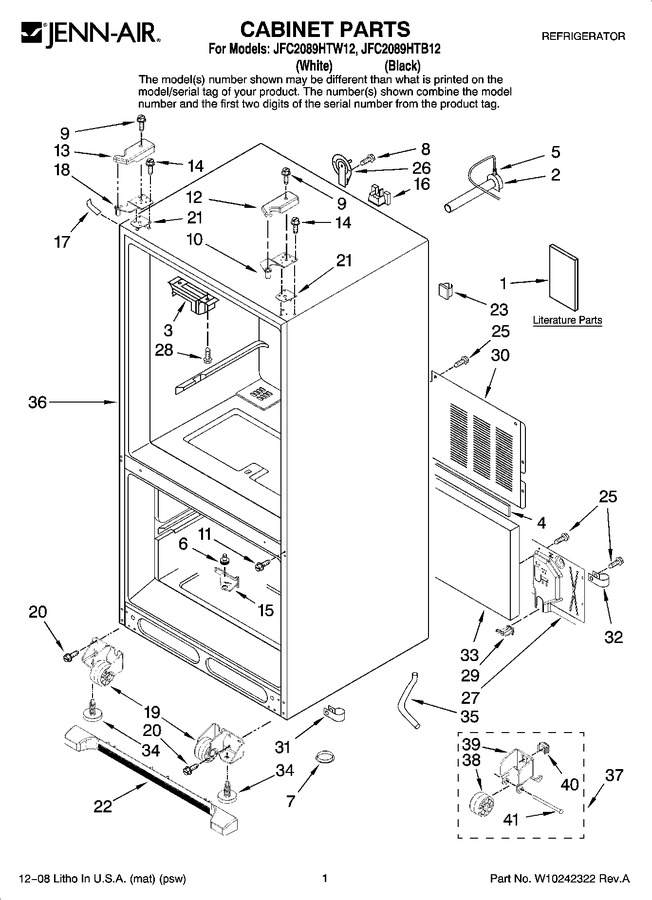

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10137647		Owners Manual		Appelez-nous	-
1	67006616		Tech Sheet		Appelez-nous	-
1	67005707		Tag, Energy		Appelez-nous	-
2	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 114.15
3	WP67003405		Block, Pivot   (Replaces: 67003405)			Immediately	$ 7.82
4	B5759649		Gasket		Appelez-nous	-
5	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.05
6	WP67006642		Pin, Center Hinge   (Replaces: 67006642)				$ 7.93
7	A3076901		Plug-button				$ 5.70
8	WP98165		Screw   (Replaces: 67006287)				$ 8.00
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.19
10	12626910ED		Hinge, Top Right				$ 118.92
11	W11573362		Screw (6)   (Replaces: 67006380)				$ 14.02
12	12629801B		Cover, Right Hinge (black)				$ 25.13
12	12629801W		Cover, Right Hinge (white)				$ 24.68
13	67007156		Cover, Left Hinge (white)		Appelez-nous	-
13	W10217485		Cover, Left Hinge (black)   (Replaces: 67006726)				$ 21.64
14	WP489349		Screw (6)   (Replaces: 67006303)			Immediately	$ 7.88
15	67002959		Hinge, Center (white)				$ 41.46
15	67002960		Hinge, Center (black)		Appelez-nous	-
16	67004092		Block, Fill Tube		Appelez-nous	-
17	67003484		Cover, Corner (2) (white)				$ 20.40
17	67003485		Cover, Corner (2) (black)			Immediately	$ 21.09
18	12626911ED		Hinge, Top Left				$ 84.81
19	W11820444		Roller Assy.(front) (left)   (Replaces: W10130460)			Immediately	$ 35.57
19	W11820445		Roller Assy.(front) (right)   (Replaces: W10130459)			Immediately	$ 35.57
20	67006564		Screw (8)			Immediately	$ 7.69
21	12579702		Shim, Hinge		Appelez-nous	-
22	W10131133		Grille, Toe (white)		Appelez-nous	-
22	W10131134		Grille, Toe (black)				$ 53.25
23	WPM0104106		Clip (2)   (Replaces: M0104106)				$ 7.78
25	67006425		Screw (10)			Immediately	$ 6.95
26	12726003		Cover, Water Line   (Replaces: 67003331)				$ 18.28
27	67004098		Cover, Water Valve		Appelez-nous	-
28	WP7101P126-60		Screw (2)   (Replaces: 67006669)			Immediately	$ 7.61
29	12831101		Sweep, Dual Tube   (Replaces: 67004101)				$ 12.41
30	67006101		Cover, Unit				$ 76.68
31	67001067		Clip, Drain Tube				$ 9.20
32	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 10.99
33	67003796		Insulation, Sound				$ 19.27
34	WPW10141622		Brake, Foot   (Replaces: W10141622)			Immediately	$ 7.85
35	67001066		Tube, Drain				$ 55.82
37	67006118		Roller (rear)		Appelez-nous	-
38	WP10450603		Roller (rear)   (Replaces: 67005127)				$ 7.88
39	12456801V		Bracket, Roller (rear)   (Replaces: 12456801)				$ 50.57
40	M0286708		Nut, Speed				$ 45.57
41	M1205302		Pin				$ 5.85
