Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10133819 Door, Left (black) Appelez-nous -
1 W10133820 Door, Left (white) Appelez-nous -
3 WP67003637 Door, Dairy   (Replaces: 67003637) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 67001279) In-Stock Immediately $ 88.01

5 67004748 Bin, Shelf (3) (medium) In-Stock Immediately $ 87.32

6 W11311945 Screw   (Replaces: 67006786) Special Order $ 14.72

7 WP489128 Screw   (Replaces: 67006767) Special Order $ 11.40

8 W10830189 Gasket, Door (2) (white)   (Replaces: W10137006) In-Stock Immediately $ 228.91

8 W11368721 Gasket, Door (2) (black)   (Replaces: 12723206B) In-Stock Immediately $ 169.21

9 67005698 Extension, French Door (black) Appelez-nous -
9 67005700 Extension, French Door (white) Appelez-nous -
10 12752907S1 Trim, Top (lh) Special Order $ 41.04

10 12752908S1 Trim, Top (rh) Special Order $ 41.46

11 67002451 Clip, Handle Special Order $ 8.86

12 67004749 Bin, Shelf (2) (gallon) Special Order $ 90.06

13 67006513 Trim, Vertical Rh Special Order $ 134.98

14 WP12722803B Mullion, Door (black)   (Replaces: 67004131) In-Stock Immediately $ 206.80

14 WP12722803W Mullion, Door (white)   (Replaces: 67003434) In-Stock Immediately $ 261.21

16 WP67003638 Closure, Door (white)   (Replaces: 67003638) In-Stock Immediately $ 8.15

16 WP67003639 Closure, Door (black)   (Replaces: 67003639) Special Order $ 90.32

17 W11708403 Stop, Door (black)   (Replaces: 67003780) In-Stock Immediately $ 14.75

17 12968202W Stop, Door (white)   (Replaces: 67003779) Special Order $ 69.29

18 67006228 Trim, Vertical (lh) Special Order $ 147.89

19 12752909S1 Trim, Bottom (rh) Special Order $ 41.46

20 12752910S1 Trim, Bottom (lh) Appelez-nous -
21 WP98165 Screw   (Replaces: 67006473) Special Order $ 8.57

22 WP67002721 Black   (Replaces: 67002721) In-Stock Immediately $ 8.25

22 67002722 White Special Order $ 22.17

23 W10133824 Door, Right (white) Appelez-nous -
23 W10133822 Door, Right (black) Appelez-nous -
24 WP98165 Screw   (Replaces: 67006287) Special Order $ 8.57

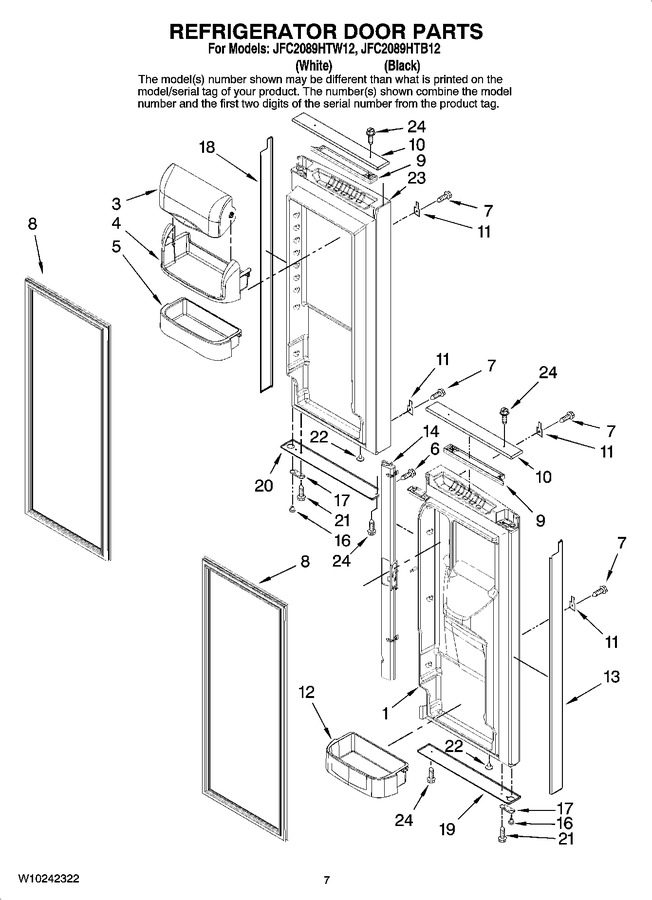

    View Diagram in Separate Window     Print Icon   Print Part List
