SELECT A DIAGRAM

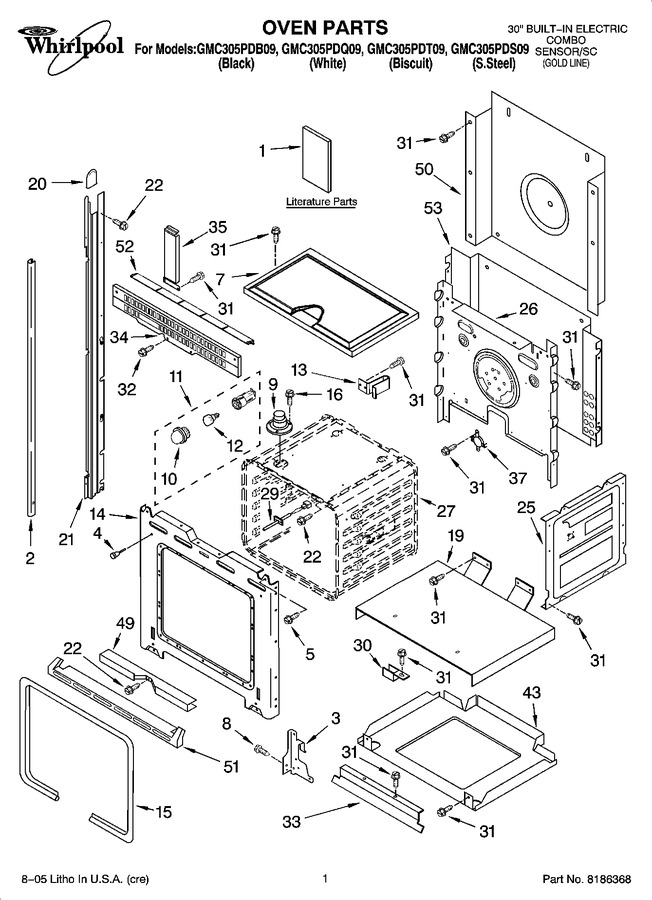

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Microwave Door Parts


09 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303853		Tech Sheet (oven)		Appelez-nous	-
1	3191638		Safer Cooking Tips		Appelez-nous	-
1	9759133		Safer Cooking Tips		Appelez-nous	-
1	8300653		Installation Instructions		Appelez-nous	-
1	4452005		Use & Care Guide (microwave)		Appelez-nous	-
1	8300610		Use & Care Guide (oven)		Appelez-nous	-
2	4450860		Trim, Side (lh White)		Appelez-nous	-
2	4450856		Trim, Side (rh Black)		Appelez-nous	-
2	4450857		Trim, Side (rh White)		Appelez-nous	-
2	4452124		Trim, Side (rh Biscuit)		Appelez-nous	-
2	4450859		Trim, Side (lh Black)		Appelez-nous	-
2	4452125		Trim, Side (lh Biscuit)		Appelez-nous	-
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	4448520		Bumper, Door				$ 22.25
5	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
7	4455865		Top, Chassis		Appelez-nous	-
8	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	8300791		Bracket, Combo		Appelez-nous	-
14	9759060		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
19	4451478		Support, Insulation				$ 54.10
20	4451605		Cap, Spacer				$ 38.55
21	4450584		Rail, Side (left Side)		Appelez-nous	-
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	4450583		Rail, Side (right Side)		Appelez-nous	-
22	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
26	4452234		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	4449845		Bracket-support		Appelez-nous	-
31	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
32	WP4450038		Screw, 6-32 X 1/2   (Replaces: 4450038)				$ 8.30
33	4457117		Deflector, Vent		Appelez-nous	-
34	8302592		Vent, Center				$ 63.42
35	4449906		Ext Filler		Appelez-nous	-
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 9759243)			Immediately	$ 55.44
43	9759713		Base, Chassis				$ 100.19
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	4448477		Trim, Bottom (black)				$ 71.44
51	4452415		Trim, Bottom (biscuit)		Appelez-nous	-
51	4448478		Trim, Bottom (white)		Appelez-nous	-
52	4456145		Vent, Control		Appelez-nous	-
53	4450365		Insulation, Back				$ 70.95
53	4451756		Chassis, Back		Appelez-nous	-
53	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
53	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
