SELECT A DIAGRAM

Diagram for 01 - Oven Parts
01 - Oven Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Oven Door Parts
03 - Oven Door Parts

Diagram for 04 - Latch Parts
04 - Latch Parts

Diagram for 05 - Internal Oven Parts
05 - Internal Oven Parts

Diagram for 06 - Cabinet And Stirrer Parts
06 - Cabinet And Stirrer Parts

Diagram for 07 - Microwave Compartment Parts
07 - Microwave Compartment Parts

Diagram for 08 - Microwave Door Parts
08 - Microwave Door Parts

Diagram for 09 - Top Venting Parts, Optional Parts
09 - Top Venting Parts, Optional Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 4450356 Gasket Appelez-nous -
3 8302320 Microcomputer Appelez-nous -
4 WP3400832 Screw   (Replaces: 8281179) In-Stock Immediately $ 8.18

5 8301848 Board, Mtrzd Latch Special Order $ 184.23

6 4451592 Filter Special Order $ 35.89

7 4451632 Bracket, Filter Appelez-nous -
8 WP4449809 Screw, 8-18 X 3/8   (Replaces: 4449809) In-Stock Immediately $ 7.55

9 8300409 Control Panel Assy W/membrane Switch (black & Black Stainless Models) Special Order $ 226.19

9 8300406 Control Panel Assy W/membrane Switch (biscuit) Appelez-nous -
9 8300408 Control Panel Assy W/membrane Switch (white Model) Appelez-nous -
10 WP4449745 Screw   (Replaces: 4449745) Special Order $ 7.98

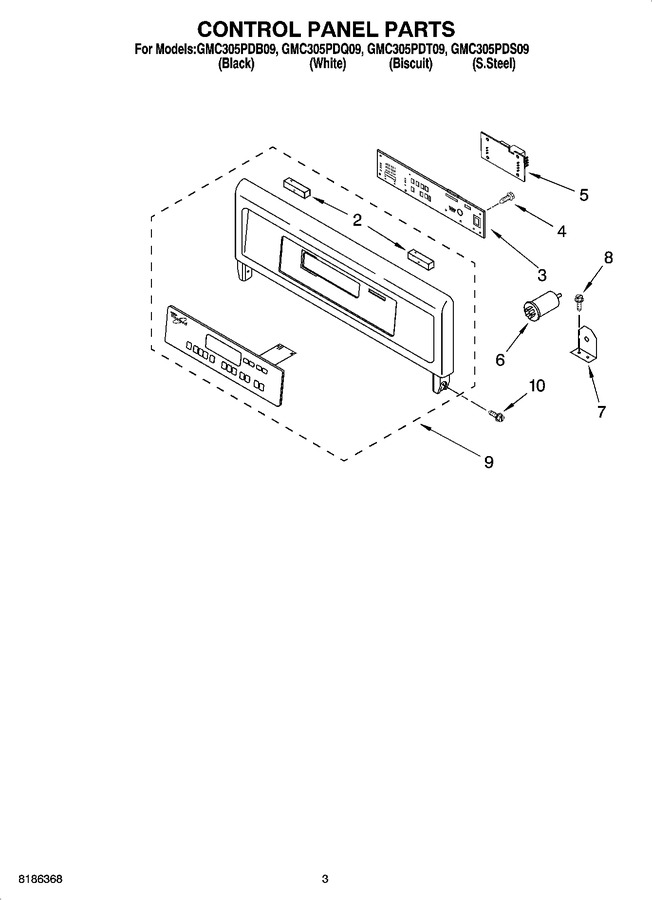

    View Diagram in Separate Window     Print Icon   Print Part List
