SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Icemaker Parts


08 - Freezer Door Parts


09 - Optional Parts (not Included)

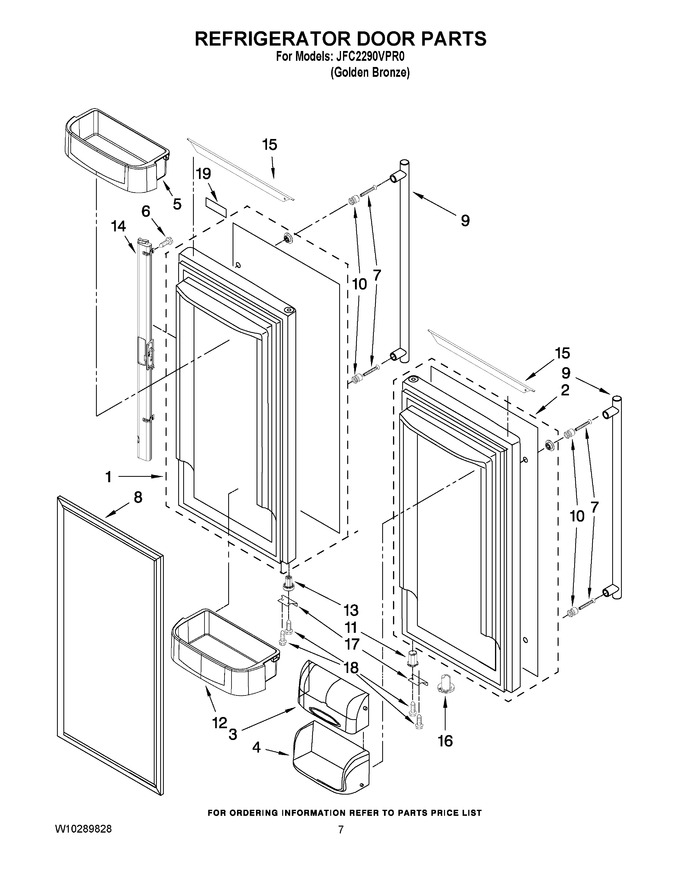

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12894234RQ		Door, Left (bronze)		Appelez-nous	-
2	12894233RQ		Door, Right (bronze)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
5	WPW10119841		Bin, Shelf (3) (medium)   (Replaces: W10119841)			Immediately	$ 90.23
6	W11311945		Screw   (Replaces: 12990204)				$ 14.02
7	WPW10133608		Screw   (Replaces: 12991202)				$ 8.30
8	W10830047		Gasket, Door (2) (black)   (Replaces: W10163998)			Immediately	$ 200.20
9	W10237394		Door Handle (bronze)		Appelez-nous	-
10	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 11.96
11	WP67002731		Bushing, Door Bottom Right (black)   (Replaces: 12028601B)			Immediately	$ 7.85
12	WPW10119846		Bin, Shelf (2) (gallon)   (Replaces: W10119846)			Immediately	$ 81.84
13	WP67002721		Bushing, Door Bottom Left (black)   (Replaces: 12699301B)			Immediately	$ 7.86
14	W11177241		Mullion, Door (black)   (Replaces: 12732508B)			Immediately	$ 178.66
15	W10259829		Trim, Door (black)				$ 183.72
16	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 86.02
17	W10153126		Stop, Door (black)				$ 14.82
18	WP98165		Screw   (Replaces: 12990504)				$ 8.00
19	W10214169		Badge (black)				$ 50.88

    View Diagram in Separate Window       Print Part List
