SELECT A DIAGRAM

Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Freezer Liner Parts
02 - Freezer Liner Parts

Diagram for 03 - Refrigerator Liner Parts
03 - Refrigerator Liner Parts

Diagram for 04 - Refrigerator Door Parts
04 - Refrigerator Door Parts

Diagram for 05 - Unit Parts
05 - Unit Parts

Diagram for 06 - Shelf Parts
06 - Shelf Parts

Diagram for 07 - Icemaker Parts
07 - Icemaker Parts

Diagram for 08 - Freezer Door Parts
08 - Freezer Door Parts

Diagram for 09 - Optional Parts (not Included)
09 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Door, Freezer Appelez-nous -
2 W10298180 Handle (bronze)   (Replaces: W10237390) Appelez-nous -
3 WP67006113 Mount, Handle   (Replaces: 13001201) In-Stock Immediately $ 12.56

4 W10436252 Gasket, Door (black)   (Replaces: W10164041) In-Stock Immediately $ 362.28

5 WPW10133608 Screw   (Replaces: 12991202) Special Order $ 10.28

6 W10259825 Trim, Door (black) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

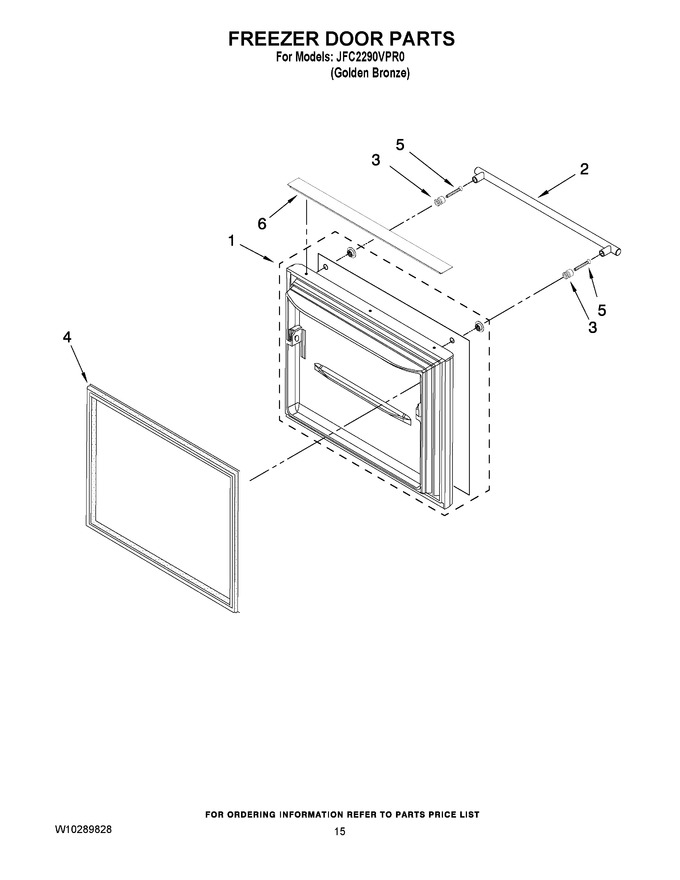

Diagram for JFC2290VPR0
