SELECT A DIAGRAM

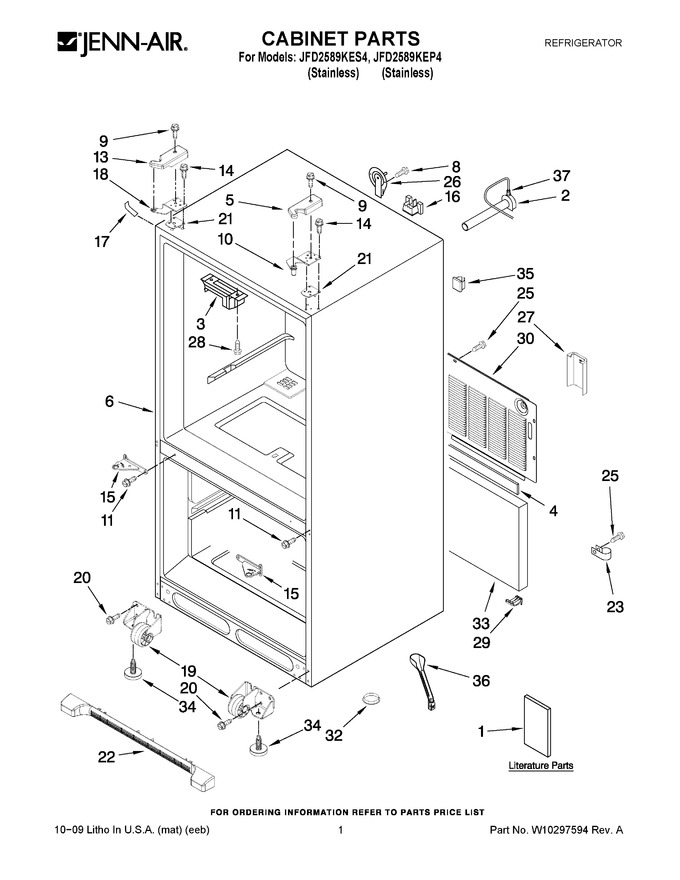

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10238846		Tech Sheet		Appelez-nous	-
1	W10215644		Energy Guide		Appelez-nous	-
1	W10137647		Owners Manual		Appelez-nous	-
2	W11176463		Elbow, Fill Tube   (Replaces: 10463203SP)			Immediately	$ 114.15
3	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 7.82
4	B5759655		Gasket				$ 12.41
5	12684202B		Cover, Right Hinge (black)		Appelez-nous	-
6	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
8	WP98165		Screw   (Replaces: 12990504)				$ 8.00
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.19
10	WP12566606ED		Hinge, Top Right   (Replaces: 12566604ED)			Immediately	$ 44.89
11	W11573362		Screw (6)   (Replaces: 12992201)				$ 14.02
13	12684201B		Cover, Left Hinge (black)		Appelez-nous	-
14	WP489349		Screw (6)   (Replaces: 12992403)			Immediately	$ 7.88
15	W10918164		Hinge, Center (black, Right )   (Replaces: 13000008ED)				$ 86.64
15	W10918164		Hinge, Center (black, Left)   (Replaces: 13000007ED)				$ 86.64
16	12777701		Block, Fill Tube				$ 7.17
17	67003485		Cover, Corner (2) (black)   (Replaces: 12587703B)			Immediately	$ 21.09
18	WP12566607ED		Hinge, Top Left   (Replaces: 12566605ED)				$ 86.75
19	W11820445		Roller Assembly (right)   (Replaces: W10275849)			Immediately	$ 35.57
19	W11820444		Roller Assembly (left)   (Replaces: W10275850)			Immediately	$ 35.57
20	67006564		Screw (8)   (Replaces: 12991302)			Immediately	$ 7.69
21	12579702		Shim, Hinge		Appelez-nous	-
22	WPW10534153		Grille, Toe (black)   (Replaces: W10244561)				$ 147.21
23	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 10.99
25	67006425		Screw (10)   (Replaces: 12990511)			Immediately	$ 6.95
26	12726003		Cover, Water Line				$ 18.28
27	W10208593		Guard, Water Valve				$ 14.96
28	WP7101P126-60		Screw (2)   (Replaces: 12990303)			Immediately	$ 7.61
29	12831101		Sweep, Dual Tube				$ 12.41
30	WPW10211855		Cover, Unit   (Replaces: W10211855)				$ 198.09
32	A3076901		Plug-button				$ 5.70
33	12820505		Insulation, Sound				$ 71.70
34	10354002		Brake, Foot			Immediately	$ 7.38
35	WPM0104106		Clip (2)   (Replaces: M0104106)				$ 7.78
36	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
37	WPM0114003		Clip   (Replaces: M0114003SP)				$ 11.05
