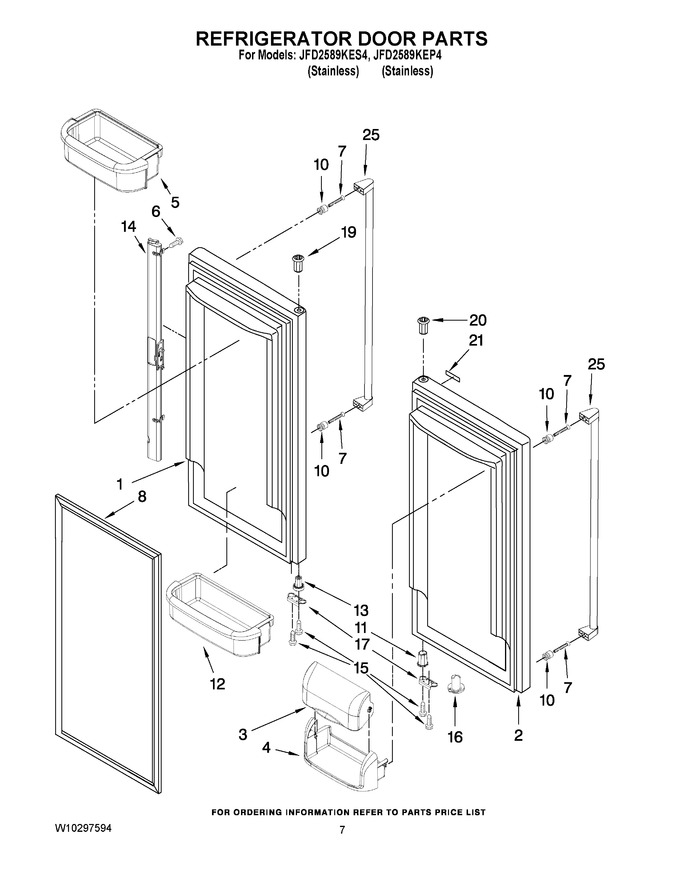

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13024076SQ		Door, Left (jfd2589kes4)				$ 439.53
1	13024081SQ		Door, Left (jfd2589kep4)		Appelez-nous	-
2	13024080SQ		Door, Right (jfd2589kep4)		Appelez-nous	-
2	13024075SQ		Door, Right (jfd2589kes4)				$ 438.59
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
5	67004748		Bin, Shelf (3)   (Replaces: 12801904)			Immediately	$ 83.16
6	W11311945		Screw   (Replaces: 12990204)				$ 14.02
7	WPW10133608		Screw, Mount   (Replaces: 12991202)				$ 8.30
8	W11368721		Gasket, Door (2) (black)   (Replaces: W10163895)			Immediately	$ 169.21
10	12945201		Mount, Handle				$ 35.20
11	WP67002731		Bushing, Door (bottom Right)   (Replaces: 12028601B)			Immediately	$ 7.85
12	67004749		Bin, Shelf (2)   (Replaces: 12840002)				$ 85.77
13	WP67002721		Bushing, Door (bottom Left)   (Replaces: 12699301B)			Immediately	$ 7.86
14	WP12722803B		Mullion, Door (black)   (Replaces: 12722803B)			Immediately	$ 206.80
15	WP98165		Screw   (Replaces: 12990504)				$ 8.00
16	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 86.02
17	W11708403		Stop, Door (black )   (Replaces: 12968202B)			Immediately	$ 14.05
19	12395501B		Bushing, Door Upper Left (black)		Appelez-nous	-
20	67004978		Bushing, Door Upper Right (black)   (Replaces: 10961006B)				$ 21.05
21	12848704		Nameplate (jfd2589kes4)				$ 60.12
21	W11636815		Nameplate (jfd2589kep4)   (Replaces: 13062401)				$ 43.19
25	WP12859110		Handle, Door (jfd2589kep4)   (Replaces: 12859110)				$ 311.98
25	12850919		Handle, Door (jfd2589kes4)				$ 37.02
