Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13092213SQ Door, Freezer Stainless Special Order $ 421.73

2 WP12850909 Handle, Door (stainless (jfd2589kes12))   (Replaces: 12850909) Special Order $ 291.96

2 WP12859110 Handle, Door (stainless (jfd2589kep12))   (Replaces: 12859110) Special Order $ 327.58

3 W10436252 Gasket, Door (black)   (Replaces: W10131754) In-Stock Immediately $ 362.28

4 67006109 Mount, Handle Appelez-nous -
5 WPW10133608 Screw, Handle   (Replaces: W10133608) Special Order $ 10.28

6 67004838 Plug, Button (black) Special Order $ 11.21


    View Diagram in Separate Window     Print Icon   Print Part List

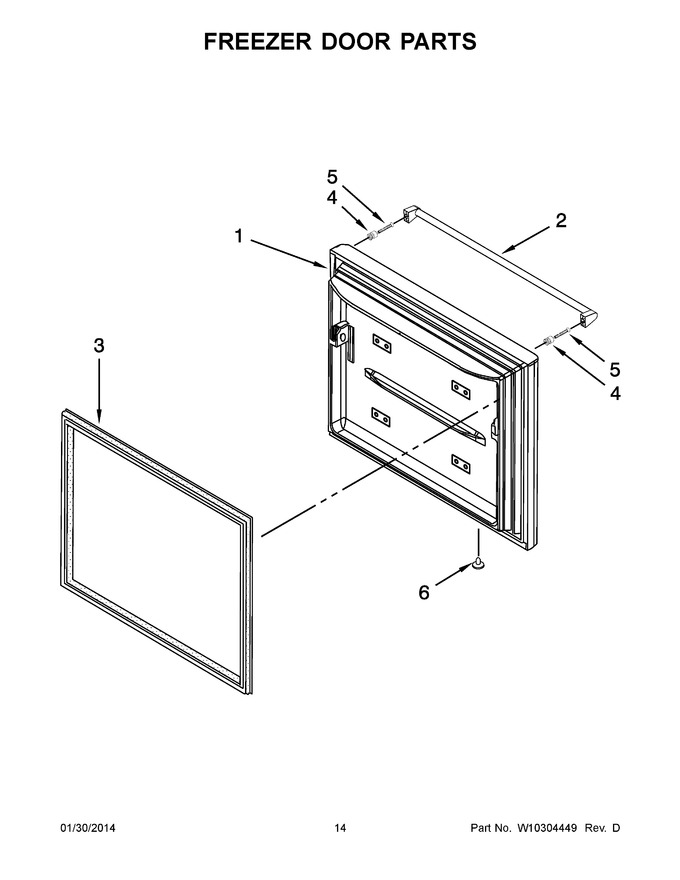

Diagram for JFD2589KES2
