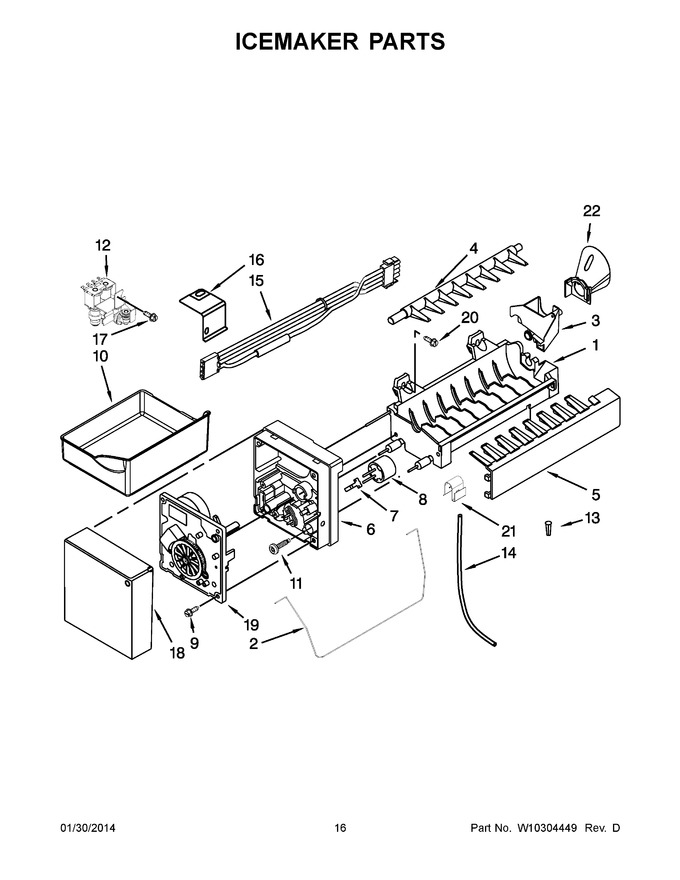

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10190929		Assembly, Mold And Heater   (Replaces: W10122527)				$ 233.15
2	WP67004028		Arm, Shutoff   (Replaces: 67004028)			Immediately	$ 91.35
3	W10122561		Cup, Water Fill   (Replaces: 628515)				$ 27.77
4	WP627843		Ejector   (Replaces: 627843)				$ 83.60
5	WP2182124		Stripper, Ice   (Replaces: 2182124)				$ 86.05
6	WP2195914		Support, Housing   (Replaces: 2194712)				$ 104.57
7	WP2315522		Retainer, Thermostat   (Replaces: 2315522)				$ 11.05
8	WP627985		Thermostat   (Replaces: 627985)				$ 109.18
9	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
10	WP67001255		Pan, Ice   (Replaces: 67001255)				$ 203.08
11	8533917		Screw				$ 13.37
12	WP67006531		Valve, Water Inlet   (Replaces: 67006531)			Immediately	$ 167.68
13	WPA3223101		Insert, Tube   (Replaces: A3223101)			Immediately	$ 7.82
14	WPB5705307		Tube, Plastic   (Replaces: 67003729)				$ 12.43
15	WPD7813010		Harness, Icemaker   (Replaces: W10146389)			Immediately	$ 73.97
16	WP2256087		Bracket, Ice Maker   (Replaces: 2256086)				$ 93.00
17	WP489128		Screw   (Replaces: 67006662)				$ 10.88
18	WPW10289690		Cover, Front   (Replaces: 67004710)			Immediately	$ 8.40
19	8201515		Assembly, Module And Motor   (Replaces: 626678)			Immediately	$ 141.64
20	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
21	WP628379		Clip, Thermal Fuse   (Replaces: 628379)				$ 10.57
22	12918001		Funnel, Fill Tube   (Replaces: 67005603)			Immediately	$ 12.41
100	D7824706Q		Icemaker Assembly (complete)			Immediately	$ 167.35
NI	N/P		Following Parts Not Illustrated,		Appelez-nous	-
NI	10244904		Coupling				$ 25.37
