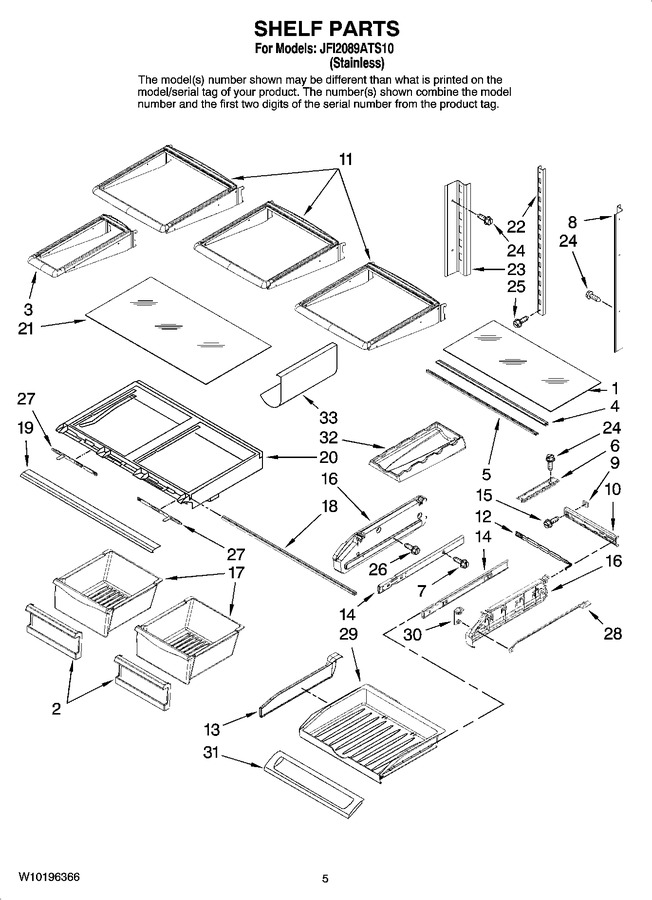

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67002332 | Glass, Pantry (Replaces: 67002332) |
|
Immediately | $ 251.30 | ||||
| 2 | 67005912 | Front, Crisper Pan (2) |
|
$ 70.62 | |||||
| 3 | W10187463 | Shelf, Mini (stationary) |
|
$ 270.80 | |||||
| 4 | W11812285 | Extr, Glass Support (2) (Replaces: 67006010) |
|
$ 53.33 | |||||
| 5 | WP12227305WD | Brace, Pantry (2) (Replaces: 67002330) |
|
$ 108.36 | |||||
| 6 | WP67001719 | Track, Pantry (Replaces: 67001719) |
|
Immediately | $ 8.99 | ||||
| 7 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 | |||||
| 8 | 67007115 | Ladder, Side |
|
- | |||||
| 9 | 67002329 | Gasket, Pantry |
|
$ 22.09 | |||||
| 10 | 12656202 | Housing, Control (Replaces: 67005625) |
|
$ 148.84 | |||||
| 11 | W10187328 | Shelf, Glide (3) |
|
- | |||||
| 12 | WP67003793 | Slide, Temperature (Replaces: 67003793) |
|
Immediately | $ 78.49 | ||||
| 13 | WP67002321 | Divider, Pantry Drawer (Replaces: 67002321) |
|
$ 33.79 | |||||
| 14 | WPW10235370 | Glide, Drawer(2) (Replaces: 67007026) |
|
Immediately | $ 199.80 | ||||
| 15 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 16 | WP12656105 | Endcap, Pantry (left) (Replaces: 67005862) |
|
Immediately | $ 58.41 | ||||
| 16 | WP12656018 | Endcap, Pantry (right) (Replaces: 67005859) |
|
Immediately | $ 58.87 | ||||
| 17 | WP67002659 | Pan, Crisper (2) (Replaces: 67002659) |
|
Immediately | $ 147.67 | ||||
| 18 | WP12227304WD | Brace, Crisper Cover (Replaces: 67002488) |
|
$ 108.69 | |||||
| 19 | 67004724 | Trim, Crisper |
|
- | |||||
| 20 | WP67006185 | Frame, Crisper (Replaces: 67006185) |
|
$ 216.05 | |||||
| 21 | WP67006655 | Glass, Crisper Cover (Replaces: 67006655) |
|
Immediately | $ 228.45 | ||||
| 22 | 67006358 | Ladder, Center |
|
- | |||||
| 23 | 67006354 | Ladder, Side |
|
- | |||||
| 24 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 25 | W10709795 | Screw (2) (Replaces: 67006360) |
|
$ 13.79 | |||||
| 26 | WP67006415 | Screw (Replaces: 67006415) |
|
$ 8.38 | |||||
| 27 | WP67005864 | Slide, Humidity Control (Replaces: 67005864) |
|
Immediately | $ 8.20 | ||||
| 28 | 67003794 | Rod, Temperature Control |
|
$ 13.82 | |||||
| 29 | W11490183 | Drawer, Pantry (Replaces: 67003530) |
|
$ 144.29 | |||||
| 30 | W11498983 | Knob, Temperature Control (Replaces: 67003791) |
|
$ 30.64 | |||||
| 31 | W10827015 | Door, Pantry Drawer (Replaces: 67005899) |
|
Immediately | $ 175.81 | ||||
| 32 | 67001656 | Trivet, Wine |
|
$ 72.49 | |||||
| 33 | 67005999 | Rack, Bottle |
|
- |
