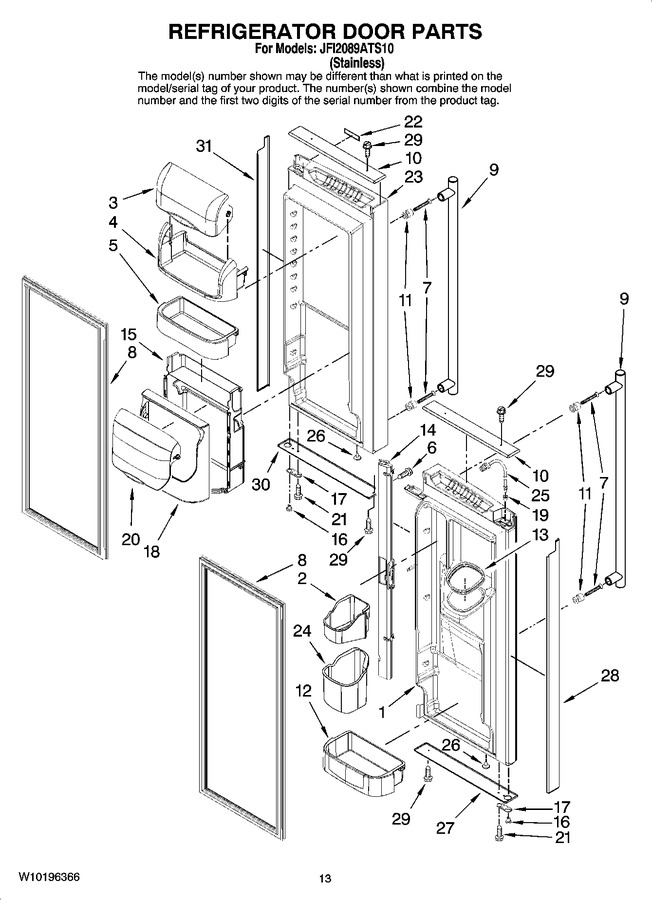

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10187652 | Door, Left (black) |
|
- | |||||
| 2 | W10187453 | Bin, Upper Door |
|
$ 73.08 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 67003637) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 88.01 | ||||
| 5 | WP67006313 | Bin, Shelf (chiller Top) (Replaces: 67006313) |
|
Immediately | $ 84.62 | ||||
| 6 | W11311945 | Screw (Replaces: 67006786) |
|
$ 14.72 | |||||
| 7 | WPW10133608 | Screw, Handle (Replaces: W10133608) |
|
$ 10.28 | |||||
| 8 | W11378944 | Gasket, Door (black) (Replaces: W10162891) |
|
Immediately | $ 187.59 | ||||
| 9 | WP12850910 | Handle, Door (stainless) (Replaces: 12850910) |
|
$ 289.68 | |||||
| 10 | W10187660 | Trim, Door Top |
|
- | |||||
| 11 | 67006109 | Mount, Handle |
|
- | |||||
| 12 | WP12840004 | Bin, Shelf (gallon) (Replaces: W10187434) |
|
$ 94.89 | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: 67007108) |
|
Immediately | $ 32.76 | ||||
| 14 | WPW10151713 | Mullion, Door (black) (Replaces: W10164405) |
|
$ 342.08 | |||||
| 15 | W11266639 | Frame, Chiller (rear) (Replaces: 67006315) |
|
$ 269.63 | |||||
| 16 | WP67003639 | Closure, Door (black) (Replaces: 67003639) |
|
$ 90.32 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 67007011) |
|
Immediately | $ 14.75 | ||||
| 18 | W11266639 | Frame, Chiller (front) (Replaces: 67006314) |
|
$ 269.63 | |||||
| 19 | 12996601 | Clip, Bushing Wire (left Door) (Replaces: 67005954) |
|
$ 10.05 | |||||
| 20 | WP67006312 | Door, Chiller (Replaces: 67006312) |
|
Immediately | $ 86.29 | ||||
| 21 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.57 | |||||
| 22 | 12848704 | Nameplate |
|
$ 60.12 | |||||
| 23 | W10187651 | Door, Right (black) |
|
$ 426.70 | |||||
| 24 | W10187454 | Bin, Lower Door |
|
$ 44.94 | |||||
| 25 | 12962106 | Waterline, Door |
|
$ 133.09 | |||||
| 26 | 67004838 | Plug, Button (black) |
|
$ 11.21 | |||||
| 27 | W10187665 | Trim, Door Bottom |
|
- | |||||
| 28 | W10187669 | Trim, Door Side |
|
- | |||||
| 29 | W11233072 | Screw, Trim (6) (Replaces: 67006626) |
|
Immediately | $ 14.72 | ||||
| 30 | W10187666 | Trim, Door Bottom |
|
- | |||||
| 31 | W10187670 | Trim, Door Side |
|
- |
