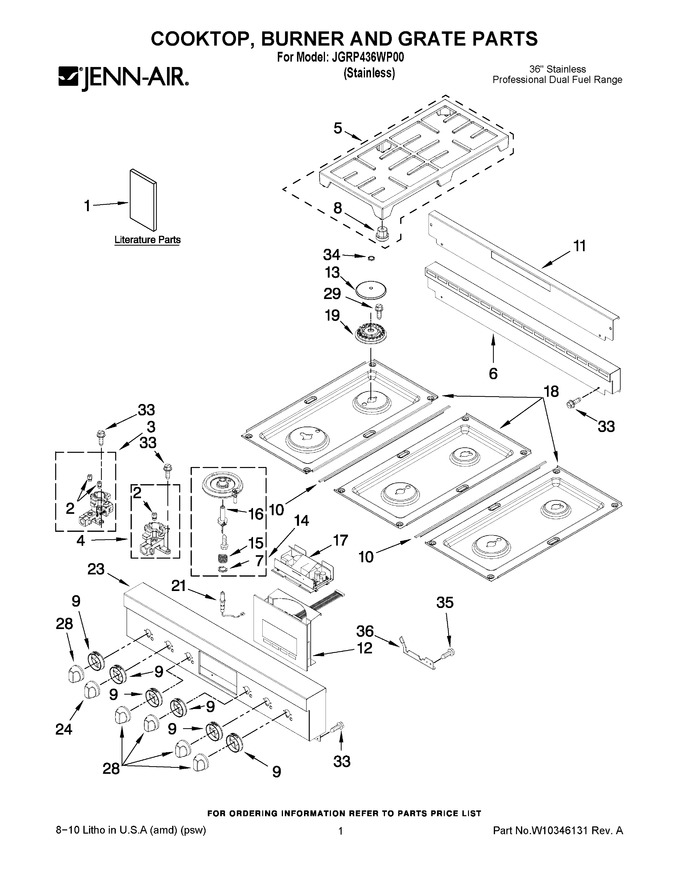

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10323233 | Tech Sheet (english) |
|
- | |||||
| 1 | W10323234 | Tech Sheet (french) |
|
- | |||||
| 1 | W10322721 | Use & Care Guide |
|
- | |||||
| 1 | W10322719 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10075750 | Instr, Installer |
|
- | |||||
| 2 | W10160179 | Orifice (lf,rf (inner)) |
|
$ 75.77 | |||||
| 2 | W10791075 | Orifice (cr) (Replaces: W10282663) |
|
$ 103.68 | |||||
| 2 | W10160232 | Orifice (lr & Cf & Rr) |
|
$ 45.77 | |||||
| 2 | W10160185 | Orifice (lf,rf (outer)) |
|
$ 73.54 | |||||
| 3 | WPW10160187 | Orifice Holder Lf,rf (Replaces: W10160187) |
|
$ 81.57 | |||||
| 4 | W10282659 | Orifice Holder (cr) |
|
$ 40.50 | |||||
| 4 | W10160234 | Orifice Holder (lr & Cf & Rr) |
|
$ 51.39 | |||||
| 5 | W11344501 | Grate, Burner (Replaces: W10276551) |
|
Immediately | $ 218.28 | ||||
| 6 | W10323249 | Trim, Island |
|
$ 316.14 | |||||
| 7 | W10160825 | Clip, Electrode |
|
$ 52.85 | |||||
| 8 | W10185266 | Pad, Grate (Replaces: 8286695) |
|
Immediately | $ 15.47 | ||||
| 9 | W10276494 | Bezel |
|
$ 80.42 | |||||
| 10 | W10271524 | T-strip |
|
$ 212.34 | |||||
| 11 | W10323250 | Island, Trim Insert |
|
$ 181.79 | |||||
| 12 | W10335686 | Assembly, Keypad |
|
$ 1,142.67 | |||||
| 13 | WP8286816 | Cap, Burner (cr) (Replaces: 8286816) |
|
$ 110.74 | |||||
| 13 | WPW10115952 | Cap, Burner (rf,lf) (Replaces: W10115952) |
|
$ 119.01 | |||||
| 13 | WPW10160229 | Cap, Burner (rr,cf,lr) (Replaces: W10160229) |
|
Immediately | $ 114.80 | ||||
| 14 | WPW10320937 | Base, Burner (rf,lf) (Replaces: W10320937) |
|
$ 157.22 | |||||
| 14 | W10189082 | Base, Burner (rr,cf,lr) |
|
- | |||||
| 15 | W10160826 | Spring, Electrode (lf,lr,rf,rr,cf) |
|
- | |||||
| 15 | 8286863 | Spring, Electrode (cr) |
|
$ 76.92 | |||||
| 16 | WPW10145991 | Electrode (cr) (Replaces: W10145991) |
|
Immediately | $ 84.47 | ||||
| 16 | WPW10160235 | Electrode (rr,cf,lr) (Replaces: W10160235) |
|
$ 42.08 | |||||
| 16 | W10250406 | Electrode (lf,rf) |
|
$ 30.27 | |||||
| 17 | WPW10145531 | Assembly, Power Supply (Replaces: W10145531) |
|
Immediately | $ 311.25 | ||||
| 18 | W10272902 | Cooktop (middle) |
|
- | |||||
| 18 | W10189101 | Cooktop (right) |
|
$ 345.78 | |||||
| 18 | W10189104 | Cooktop (left) |
|
$ 146.58 | |||||
| 19 | WPW10282515 | Burner Head (cr) (Replaces: W10282515) |
|
Immediately | $ 149.87 | ||||
| 19 | WPW10250459 | Burner Head (rf,lf) (Replaces: W10250459) |
|
Immediately | $ 154.23 | ||||
| 19 | W10250458 | Burner Head (rr,cf,lr) |
|
- | |||||
| 21 | W10854967 | Electrode, Wire (Replaces: 8286725) |
|
Immediately | $ 48.38 | ||||
| 23 | W11444940 | Panel, Control (Replaces: W10295785) |
|
$ 832.56 | |||||
| 24 | W10145568 | Knob, Control Rf,lf |
|
$ 52.92 | |||||
| 28 | W10145454 | Knob, Control |
|
$ 46.94 | |||||
| 29 | W11404293 | Screw (Replaces: W10078270) |
|
Immediately | $ 14.74 | ||||
| 33 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 34 | W10115953 | Nut, Burner |
|
$ 9.78 | |||||
| 35 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 7.55 | |||||
| 36 | W10130759 | Bracket,console (right) |
|
$ 75.94 | |||||
| 36 | W10130760 | Bracket,console (left) |
|
$ 75.94 |
