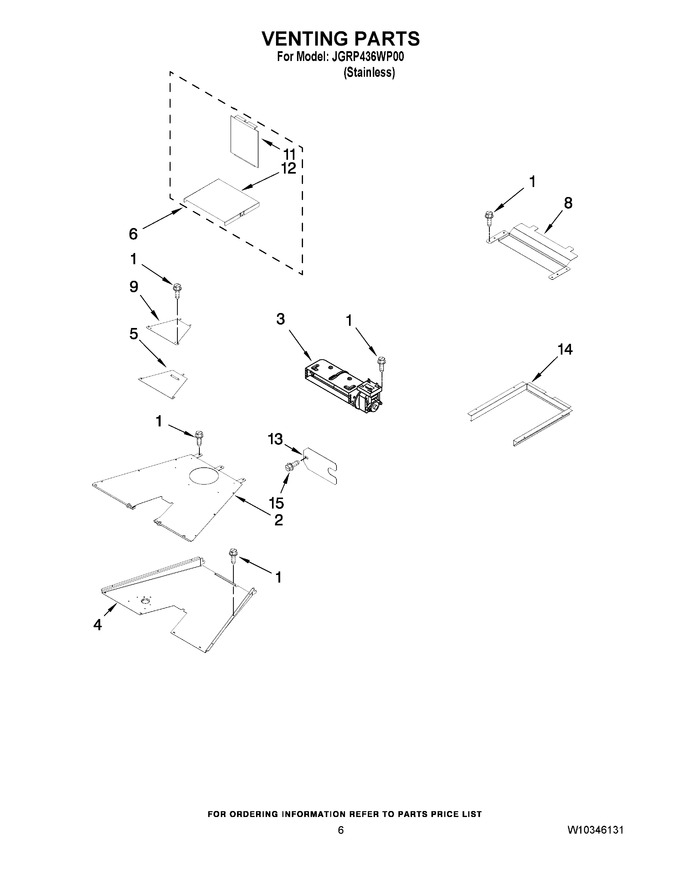

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 8.76
2	W10299182		Vent, Cooling Top			Immediately	$ 156.38
3	WPW10245511		Blower   (Replaces: W10245511)			Immediately	$ 306.02
4	W10349015		Vent, Cooling Bottom   (Replaces: W10299183)			Immediately	$ 203.33
5	W10160875		Plate, Latch		Appelez-nous	-
6	W10340579		Chimney, Box Assembly   (Replaces: W10145684)		Appelez-nous	-
8	W10145748		Bracket, Blower		Appelez-nous	-
9	W10160858		Cover, Latch				$ 76.94
11	W10246087		Insulation, Chimney		Appelez-nous	-
12	W10246086		Retainer, Insulation Chimney		Appelez-nous	-
13	W10145381		Cover, Channel		Appelez-nous	-
14	W10145363		Duct, Primary Air		Appelez-nous	-
15	WP3400805		Screw   (Replaces: 3400805)				$ 7.55

    View Diagram in Separate Window       Print Part List
