SELECT A DIAGRAM
01 - Cooktop Parts
02 - Chassis Parts
03 - Manifold Parts

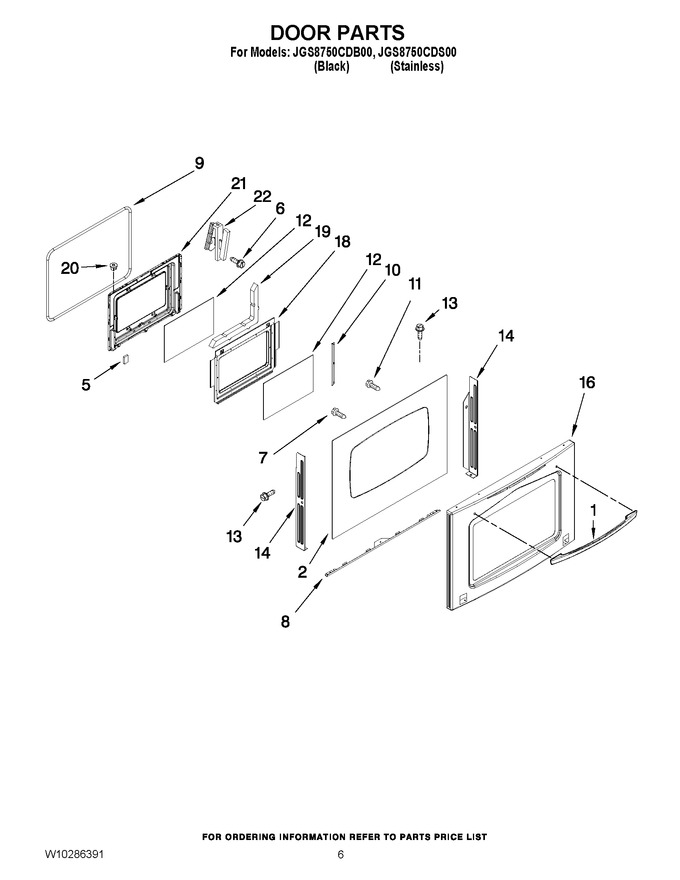

04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74008625 | Handle, Door (Replaces: 7701P473-60) |
|
$ 255.16 | |||||
| 2 | 7922P051-60 | Glass, Door (black) |
|
- | |||||
| 5 | 7109P082-60 | Spacer, Rubber |
|
- | |||||
| 6 | WP3400029 | Screw (Replaces: 7103P176-60) |
|
Immediately | $ 7.76 | ||||
| 7 | WP90767 | Screw, Handle (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 8 | 8020P074-60 | Support, Glass |
|
- | |||||
| 9 | WPW10162384 | Gasket, Door (Replaces: W10162384) |
|
Immediately | $ 86.23 | ||||
| 10 | 3801F886-51 | Bracket, Glass |
|
$ 38.25 | |||||
| 11 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 13.55 | |||||
| 12 | 74003645 | Glass, Inner (2) (Replaces: 7902P436-60) |
|
Immediately | $ 180.59 | ||||
| 13 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 17.71 | |||||
| 14 | 3608F138-70 | Trim, Door |
|
$ 66.28 | |||||
| 16 | W10185621 | Frame, Door (stainless) |
|
$ 268.43 | |||||
| 16 | 3603F075-70 | Frame, Door (black) |
|
$ 187.06 | |||||
| 18 | 3601F373-51 | Baffle, Door |
|
$ 271.36 | |||||
| 19 | 7002P246-60 | Insulation, Door |
|
$ 58.49 | |||||
| 20 | WP74001574 | Nut, Snap (black) (Replaces: 7103P141-60) |
|
Immediately | $ 11.01 | ||||
| 21 | 2402W312-19 | Lining, Door |
|
$ 144.50 | |||||
| 22 | 74011475 | Hinge, Door (Replaces: 7106P143-60) |
|
Immediately | $ 130.52 |
