SELECT A DIAGRAM

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts


04 - Door Parts

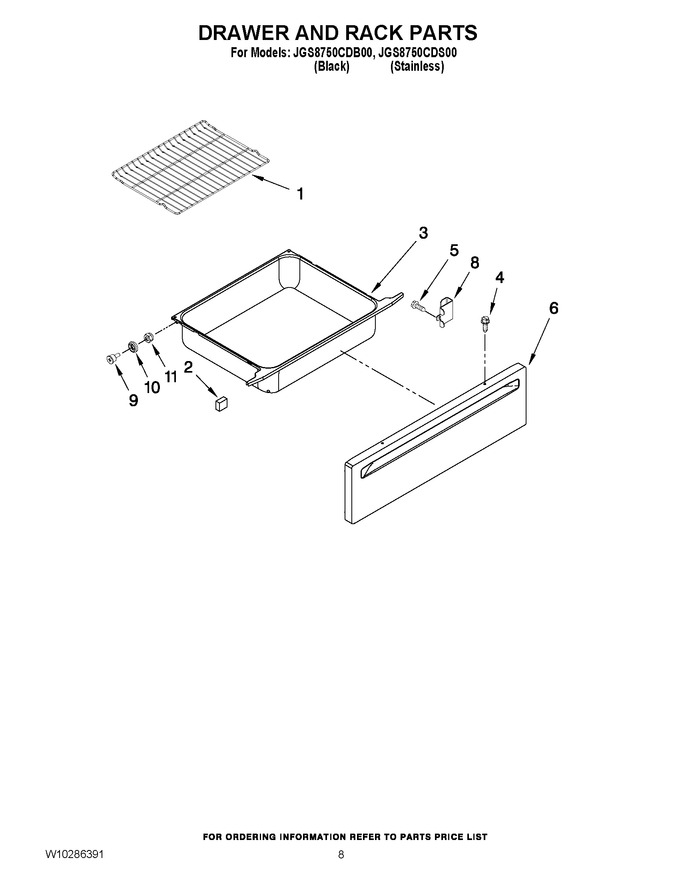

05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7801P173-60		Rack, Oven (2)				$ 55.72
2	WPW10131078		Spacer, Rubber   (Replaces: 7103P139-60)				$ 4.65
3	WP3405F037-80		Drawer, Service   (Replaces: 3405F033-80)				$ 355.81
4	WP7101P072-60		Screw, Panel   (Replaces: 7101P072-60)				$ 8.06
5	W11347848		Screw   (Replaces: 7101P376-60)				$ 14.23
6	N/P		Panel,drawer Frnt		Appelez-nous	-
8	3801F887-51		Bracket, Drawer				$ 8.32
9	WP74004078		Roller Drawer (2)   (Replaces: 8014P022-60)			Immediately	$ 12.48
10	7118P032-60		Shaft, Roller (2)		Appelez-nous	-
11	WP488130		Nut, Lock   (Replaces: 7103P082-60)				$ 7.32

    View Diagram in Separate Window       Print Part List
