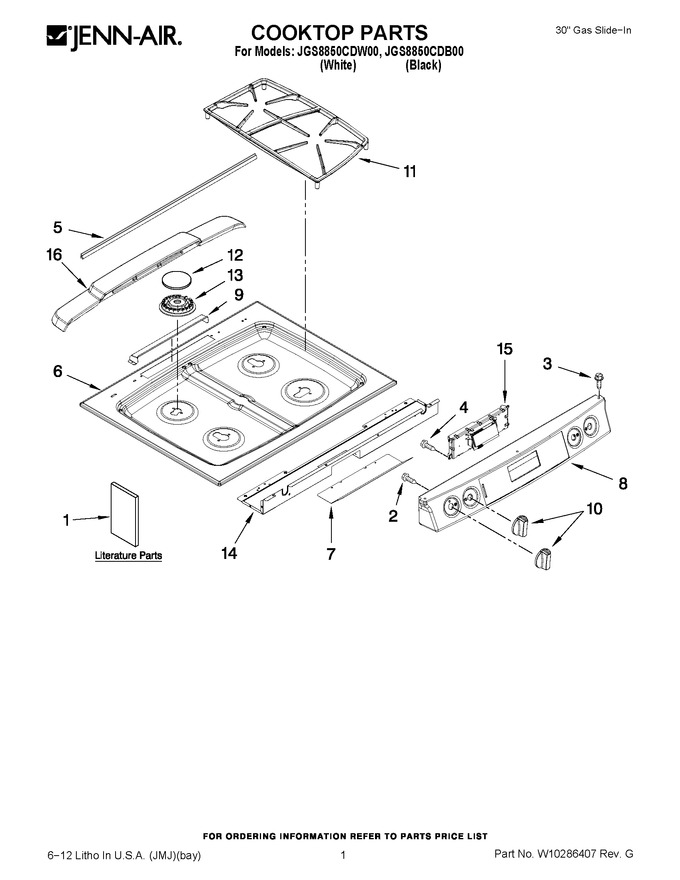

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9762761		Safe Cooking (english)		Appelez-nous	-
1	W10235526		Owners Manual		Appelez-nous	-
1	W10065852		Safe Cooking (french)		Appelez-nous	-
1	W10253459		Installation Instructions		Appelez-nous	-
1	W10235693		Wiring Diagram Brochure, Tips		Appelez-nous	-
2	WP98008544		Screw   (Replaces: 7101P636-60)				$ 13.87
3	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
4	WP59002061		Screw   (Replaces: 7101P077-60)				$ 8.18
5	7201P143-60		Gasket, Door Top				$ 16.81
6	W10202584		Cooktop (black)		Appelez-nous	-
6	W10204432		Cooktop (white)		Appelez-nous	-
7	7003P154-60		Shield, Control		Appelez-nous	-
8	W10235330		Panel, Control (white)				$ 324.47
8	W10235331		Panel, Control (black)				$ 338.63
9	3601F221-45		Baffle,vent Cover				$ 28.30
10	W10255424		Knob, Valve (black)				$ 34.81
10	W10255423		Knob, Valve (white)		Appelez-nous	-
11	7518P358-60		Grate, Burner		Appelez-nous	-
12	7504P204-60		Cap, Burner (black 16k)		Appelez-nous	-
12	7504P243-60		Cap, Burner (dual Outer)		Appelez-nous	-
12	7504P242-60		Cap, Burner (dual Inner)		Appelez-nous	-
12	WP8284669		Cap, Burner (black 5k)   (Replaces: 7504P202-60)			Immediately	$ 75.59
12	7504P165-60		Cap, Burner (black 12.5k)		Appelez-nous	-
12	7504P260-60		Cap, Burner (black, Dual)				$ 108.31
13	W10203534		Base, Burner (5k Lr)   (Replaces: 7540P036-60)				$ 102.65
13	8215559		Base, Burner (16k Rf)   (Replaces: 7540P038-60)				$ 115.56
13	7505P349-60		Base, Burner (dual Burner, Lf)		Appelez-nous	-
13	W10203537		Base, Burner (12.5k, Rr)   (Replaces: 7540P037-60)				$ 104.12
14	3807F751-51		Support, Cntl Pnl		Appelez-nous	-
15	WP8507P228-60		Control, (eoc)   (Replaces: 8507P228-60)			Immediately	$ 411.11
16	7724P200-60		Cover, Vent				$ 88.44
