SELECT A DIAGRAM

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts

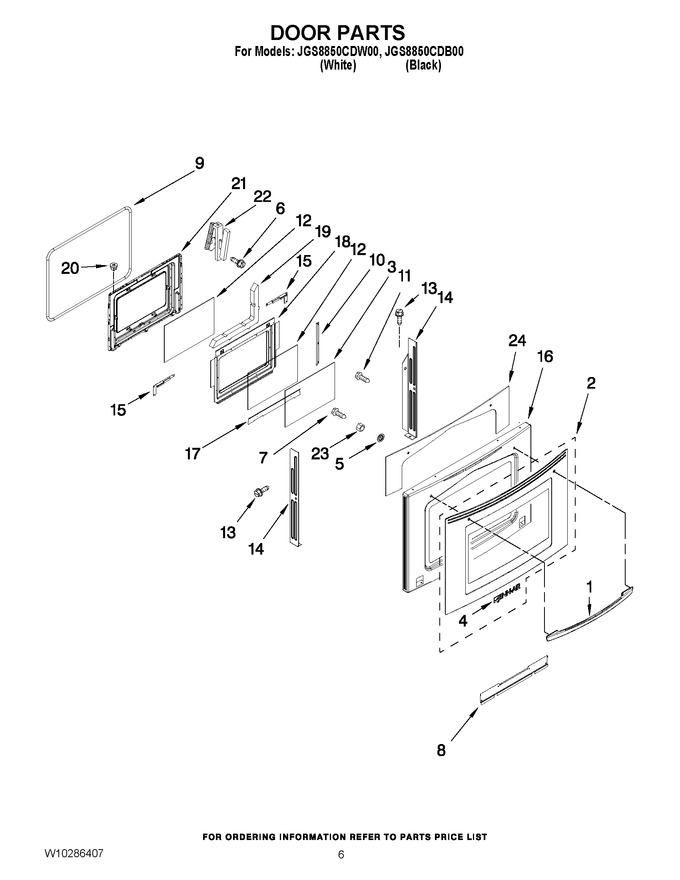

04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10223163		Handle, Door (black)		Appelez-nous	-
1	W10223164		Handle, Door (white)				$ 274.32
2	W10272330		Glass, Door (white)				$ 265.49
2	WPW10272332		Glass, Door (black)   (Replaces: W10272332)				$ 315.91
3	7902P768-60		Glass, Door (inner Coated)		Appelez-nous	-
4	WPW10214168		Nameplate (black)   (Replaces: W10190724)				$ 85.95
4	W10190723		Nameplate (white)				$ 111.95
5	7109P082-60		Washer		Appelez-nous	-
6	WP4159193		Screw   (Replaces: 7101P282-60)				$ 5.07
7	WP98008544		Screw, Handle   (Replaces: 7101P636-60)				$ 13.87
8	3804F317-80		Support, Glass				$ 65.61
9	WPW10162384		Gasket, Door   (Replaces: W10162384)			Immediately	$ 86.23
10	3801F886-51		Bracket, Glass				$ 38.25
11	W11347848		Screw   (Replaces: 7101P376-60)				$ 14.23
12	74003645		Glass, Inner   (Replaces: 7902P436-60)			Immediately	$ 180.59
13	WP98008545		Screw   (Replaces: 7101P633-60)				$ 18.60
14	3608F138-70		Trim, Door (black)				$ 66.28
14	3608F138-71		Trim, Door (white)				$ 34.76
15	3804F308-51		Retainer, Glass (left)		Appelez-nous	-
15	3804F307-51		Retainer, Glass (right)				$ 109.75
16	3603F075-70		Frame, Door (black)				$ 187.06
16	3603F075-71		Frame, Door (white)				$ 390.67
17	3604F418-51		Shield, Door				$ 77.46
18	3601F373-51		Baffle, Door				$ 284.93
19	7002P246-60		Insulation, Door				$ 58.49
20	WP74001574		Nut, Snap   (Replaces: 7103P141-60)			Immediately	$ 11.74
21	2402W312-19		Lining, Door				$ 144.50
22	74011475		Hinge, Door   (Replaces: 7106P143-60)			Immediately	$ 130.52
23	WP3400029		Nut   (Replaces: 7103P176-60)			Immediately	$ 8.19
24	7002P465-60		Insulation, Foil		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
