View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Chassis Parts

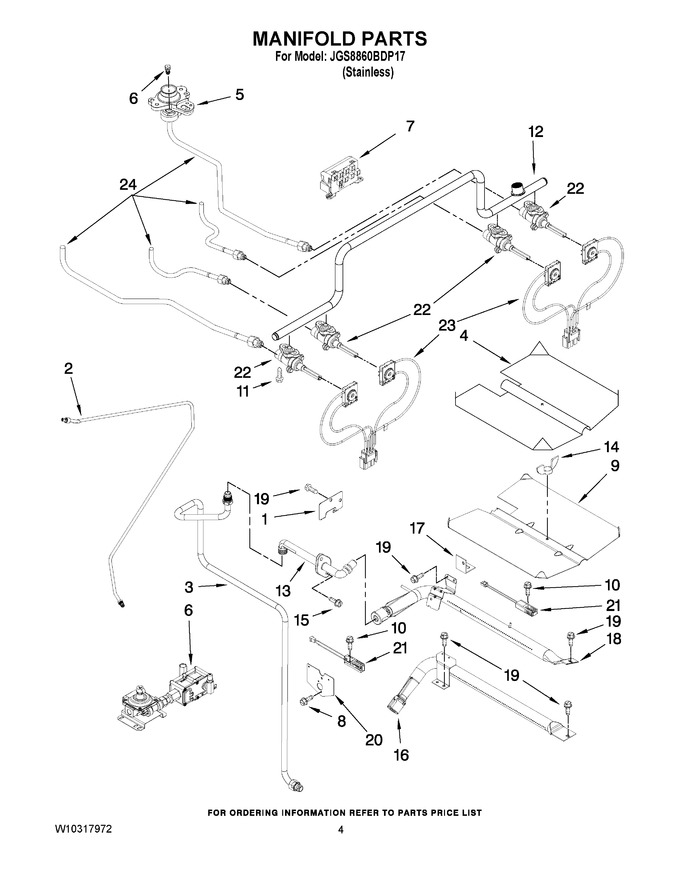

03 - Manifold Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F421-45 | Cover,ignitor Wire |
|
- | |||||
| 2 | W10224720 | Tubing, Gas Supply |
|
$ 250.43 | |||||
| 3 | 7506P301-60 | Tubing, Broiler |
|
- | |||||
| 4 | 3601F307-45 | Baffle, Broil |
|
$ 200.26 | |||||
| 5 | WP7527P004-60 | Orifice, Holder (15k, Rf) (Replaces: 7527P004-60) |
|
$ 85.05 | |||||
| 5 | WP7527P002-60 | Orifice, Holder (9.2k, Rr) (Replaces: 7527P002-60) |
|
$ 85.05 | |||||
| 5 | 74009553 | Orifice, Holder (5k,lr) (Replaces: 7527P042-60) |
|
$ 87.81 | |||||
| 5 | WP7527P061-60 | Orifice, Holder (dual, Lf) (Replaces: 7527P061-60) |
|
$ 113.03 | |||||
| 6 | W10130932 | Valve, Safety (Replaces: 7501P231-60) |
|
Immediately | $ 389.94 | ||||
| 7 | WPW10475147 | Module, Spark (Replaces: 7431P038-60) |
|
Immediately | $ 238.24 | ||||
| 8 | WP3387230 | Screw (Replaces: 7101P502-60) |
|
Immediately | $ 8.54 | ||||
| 9 | 3601F239-45 | Baffle, Bake |
|
- | |||||
| 10 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 5.07 | |||||
| 11 | W11233072 | Screw, Support (4) (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 12 | W10165142 | Pipe, Manifold |
|
$ 114.40 | |||||
| 13 | WP74010901 | Fitting, Broil (Replaces: 7507P407-60) |
|
$ 87.75 | |||||
| 14 | 7103P030-60 | Nut, Wing |
|
$ 7.43 | |||||
| 15 | W11846982 | Screw (Replaces: 7101P676-60) |
|
$ 11.75 | |||||
| 16 | 7505P254-60 | Burner, Bake |
|
- | |||||
| 17 | 3807F480-45 | Support, Bake Bnr |
|
$ 17.01 | |||||
| 18 | 7505P293-60 | Burner, Broil |
|
$ 89.91 | |||||
| 19 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 20 | 3605F269-45 | Plate, Broil Fitting |
|
- | |||||
| 21 | 74007498 | Ignitor, Electric Ignition (Replaces: 7432P106-60) |
|
$ 87.11 | |||||
| 22 | 7502P561-60 | Valve, Top Burner (5k, Lr) |
|
$ 177.73 | |||||
| 22 | 7502P562-60 | Valve, Top Burner (9.2k, Rr) |
|
$ 216.90 | |||||
| 22 | WP74011649 | Valve, Top Burner (dual Ring, Lf) (Replaces: 7502P533-60) |
|
$ 366.30 | |||||
| 22 | 7502P564-60 | Valve, Top Burner (15k, Rf) |
|
$ 117.14 | |||||
| 23 | 4005F421-45 | Cover,ignitor Wire |
|
- | |||||
| 23 | WPW10181456 | Switch, Reignition (lf/lr) (Replaces: W10181456) |
|
Immediately | $ 207.44 | ||||
| 23 | W10181455 | Switch, Reignition (rf/rr) |
|
$ 202.14 | |||||
| 24 | 7506P460-60 | Tube, Burner (rf) |
|
$ 23.53 | |||||
| 24 | 7506P458-60 | Tube, Burner (tubing, Outer Dual) |
|
$ 22.37 | |||||
| 24 | 7506P457-60 | Tube, Burner (tubing, Inner Dual) |
|
$ 22.81 | |||||
| 24 | 7506P459-60 | Tube, Burner (lr) |
|
- | |||||
| 24 | 7506P461-60 | Tube, Burner (rr) |
|
$ 30.72 | |||||
| NI | 7507P418-60 | Spuds, Lp Gas |
|
- |
