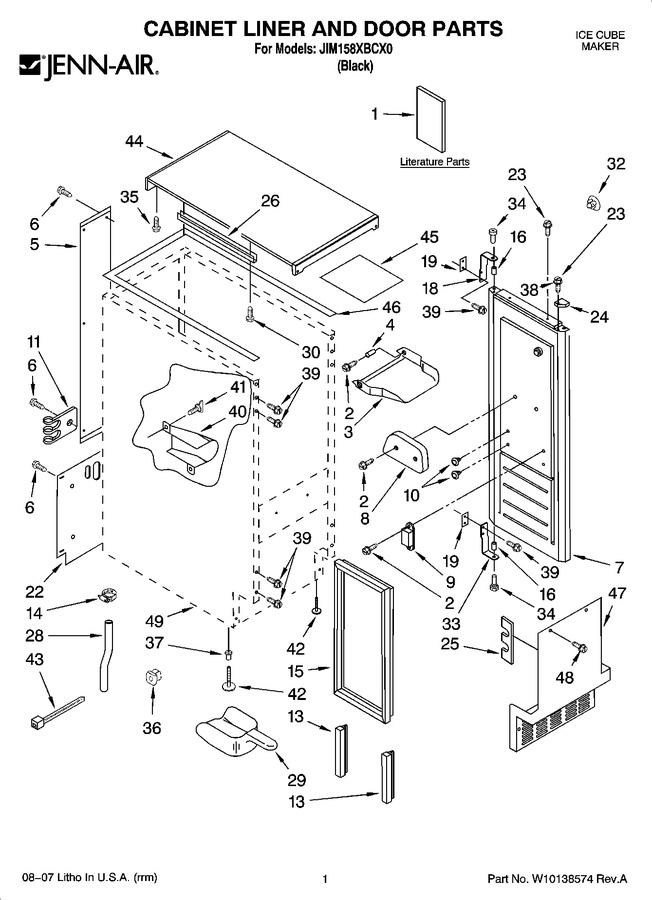

01 - Cabinet Liner And Door Parts


02 - Evaporator, Ice Cutter Grid And Water Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2324311		Service & Wiring Sheet		Appelez-nous	-
1	W10136129		Use & Care Guide		Appelez-nous	-
4	2185678		Spacer				$ 11.03
5	2217394		Cover, Wiring		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
9	8186676		Motor-fan		Appelez-nous	-
14	WP489503		Clamp   (Replaces: 489503)			Immediately	$ 11.29
18	W10136166		Hinge, Top		Appelez-nous	-
22	W10121991		Cover Unit		Appelez-nous	-
25	W11373838		Tray-cook   (Replaces: 8205676)			Immediately	$ 78.50
26	2185691		Channel, Wiring		Appelez-nous	-
30	WP3400884		Screw   (Replaces: 3400884)				$ 8.10
32	W10231471		Console (includes Item 17)   (Replaces: W10205153)		Appelez-nous	-
33	W10136164		Hinge, Bottom		Appelez-nous	-
35	WP250830		Screw, Ground   (Replaces: 489048)				$ 8.78
36	W10136999		Nut, Push-in		Appelez-nous	-
37	3400240		Nut, Leg Leveler		Appelez-nous	-
38	8189823		Trim-decor		Appelez-nous	-
39	WP999367		Screw   (Replaces: 489423)				$ 8.56
40	387997		Dial				$ 20.82
41	8281228		Thumbscrew		Appelez-nous	-
42	8193716		Leg, Leveler (4)   (Replaces: 3374849)			Immediately	$ 88.96
43	W10140197		Tube, Discharge (incl. Pre Cooler)		Appelez-nous	-
45	2185690		Shield, Electrical		Appelez-nous	-
46	982321		Track		Appelez-nous	-
49	8544936		Knob		Appelez-nous	-
