SELECT A DIAGRAM

01 - Cabinet Liner And Door Parts


02 - Evaporator, Ice Cutter Grid And Water Parts


03 - Pump Parts

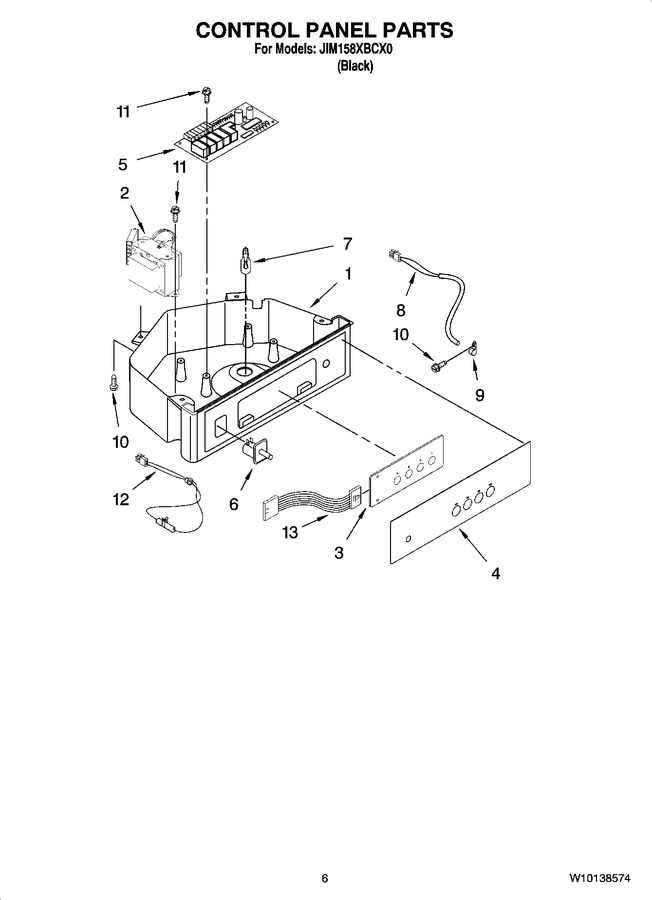

04 - Control Panel Parts


05 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2185738		Box, Control		Appelez-nous	-
2	WP2310139		Transformer   (Replaces: 2310139)				$ 322.25
6	8190993		Handle		Appelez-nous	-
7	745362		Bulb		Appelez-nous	-
8	WPW10503764		Thermostat, Bin   (Replaces: 2313633)				$ 125.23
9	2185825		Clamp		Appelez-nous	-
10	WP3400884		Screw   (Replaces: 3400884)				$ 8.10
12	WP2313635		Thermister,   (Replaces: 2313635)				$ 99.96
13	2187585		Wire Assy. Active Overlay Jumper Ice Control				$ 55.36
