SELECT A DIAGRAM

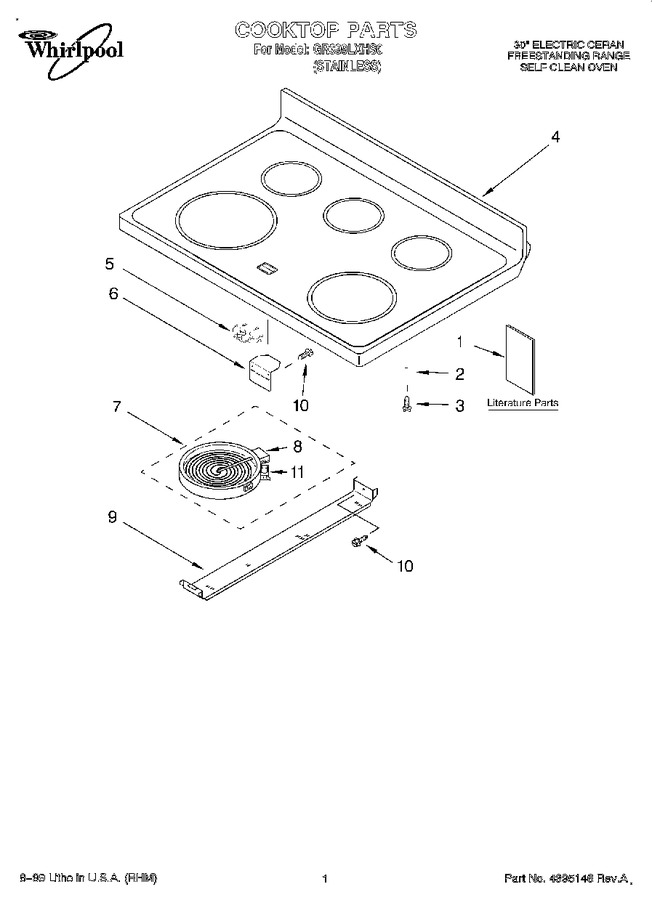

01 - Cooktop, Literature


02 - Door


03 - Chassis


04 - Control Panel


05 - Drawer And Broiler, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8053714		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3195945		Literature Parts (installation Instr (template))		Appelez-nous	-
1	LIT8272340		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT8053303		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	3149191		Spring, Locator				$ 9.45
3	WP3196170		Screw   (Replaces: 3196170)				$ 7.55
4	8053223		Cooktop		Appelez-nous	-
5	8053631		Light, Indicator (hot Surface)		Appelez-nous	-
6	3195810		Bracket, Ind Light		Appelez-nous	-
7	8053605		Element, Surface (includes No. 8) (2500 W - Lf)		Appelez-nous	-
7	W10823711		Element, Surface (includes No. 8) (1200 W - Rr)   (Replaces: 8053621)			Immediately	$ 204.39
7	8272233		Element, Surface (includes No. 8) (100 W - Cr)		Appelez-nous	-
7	W10823698		Element, Surface (includes No. 8) (1800 W - Rf)   (Replaces: 8053606)			Immediately	$ 195.12
8	8053620		Limiter, Temp		Appelez-nous	-
9	3196974		Bracket, Element (1) (back Center)		Appelez-nous	-
9	3196975		Bracket, Element (2)		Appelez-nous	-
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
11	8272690		Light, Indicator (used On 8272233)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
