SELECT A DIAGRAM

01 - Cooktop, Literature

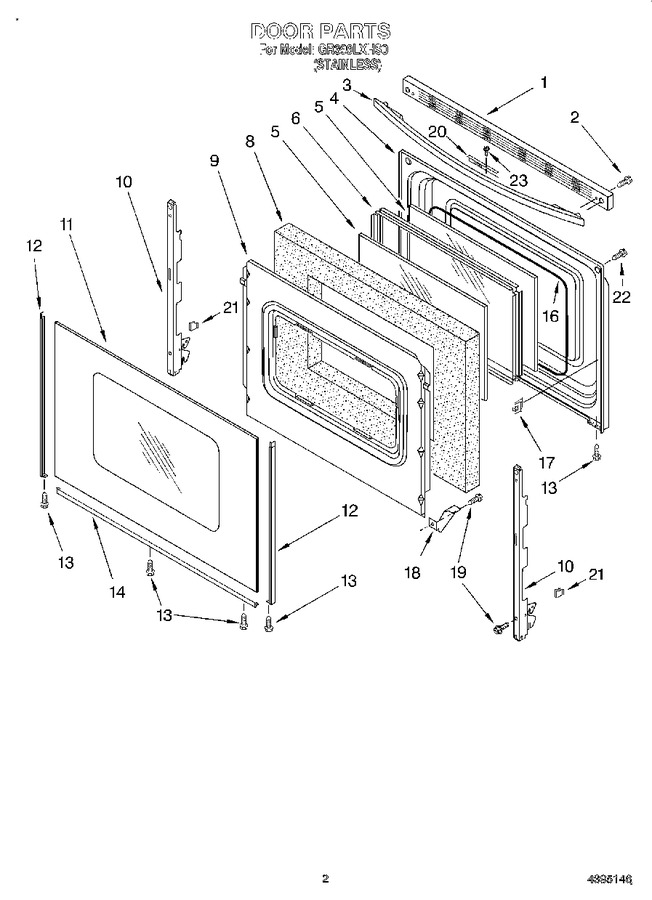

02 - Door


03 - Chassis


04 - Control Panel


05 - Drawer And Broiler, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8272243		Trim, Door Top		Appelez-nous	-
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 11.03
3	WPW10202217		Handle, Door   (Replaces: 3195922)				$ 270.65
4	3186292		Liner, Door		Appelez-nous	-
5	WP8053948		Glass, Inner (2)   (Replaces: 3186271)				$ 178.28
6	WPW10316950		Frame, Glass   (Replaces: 3186289)			Immediately	$ 90.09
8	WPW10278991		Insulation, Door   (Replaces: 3186250)			Immediately	$ 101.37
9	W11539580		Retainer, Insul.   (Replaces: 3186297)				$ 233.31
10	WP8053807		Hinge, Door (2)   (Replaces: 8053807)				$ 101.17
11	8272215		Glass, Outer		Appelez-nous	-
12	8184858		Trim, Side (black Right Hand)   (Replaces: 3195973)				$ 168.85
12	8184858		Trim, Side (black Left Hand)   (Replaces: 3195976)				$ 168.85
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
14	8184858		Trim, Lower   (Replaces: 8272242)				$ 168.85
16	3195984		Seal, Window		Appelez-nous	-
17	3196025		Clip, Glass (6)				$ 20.10
18	3196794		Bracket, Window				$ 24.34
19	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
20	3195914		Bracket, Latch		Appelez-nous	-
21	3196925		Clip, Door Stop				$ 9.06
22	WP179051		Screw   (Replaces: 3196161)			Immediately	$ 8.42
23	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18

    View Diagram in Separate Window       Print Part List
