01 - Cooktop Parts

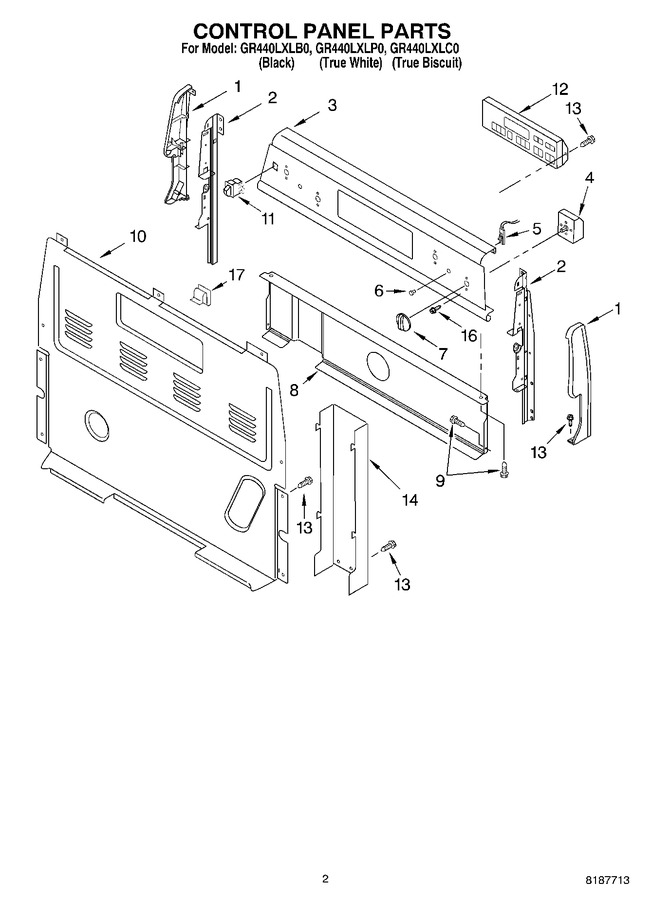

02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186191 | Endcap (white Right Hand) |
|
- | |||||
| 1 | 8272507 | Endcap (biscuit Left Hand) |
|
- | |||||
| 1 | 3186190 | Endcap (white Left Hand) |
|
- | |||||
| 1 | 8272508 | Endcap (biscuit Right Hand) |
|
- | |||||
| 1 | 3186188 | Endcap (black Left Hand) |
|
- | |||||
| 1 | 3186189 | Endcap, Right Hand (black) |
|
- | |||||
| 2 | 8523408 | Support, Endcap (left Hand) |
|
- | |||||
| 2 | 8523409 | Support, Endcap (right Hand) |
|
- | |||||
| 3 | 8523462 | Panel, Backguard (biscuit) |
|
- | |||||
| 3 | 8523461 | Panel, Backguard (white) |
|
- | |||||
| 3 | 8523460 | Panel, Backguard (black) |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (right Front) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | WP3148952 | Switch, Infinite (lr & Rf) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 4 | WP9761048 | Switch, Infinite (left Front) (Replaces: 8522887) |
|
Immediately | $ 152.52 | ||||
| 5 | WP8523266 | Light, Indicator (250 V (1)) (Replaces: 8523266) |
|
$ 117.50 | |||||
| 5 | WP8523265 | Light, Indicator (125 V (2)) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Light (3) (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | 8522567 | Knob, Infinite (4) (biscuit) |
|
$ 15.97 | |||||
| 7 | WP8522565 | Knob, Infinite (4) (white) (Replaces: 8522565) |
|
Immediately | $ 20.90 | ||||
| 7 | WP8522566 | Knob, Infinite (4) (black) (Replaces: 8522566) |
|
$ 22.29 | |||||
| 8 | 8523280 | Shield, Heat |
|
- | |||||
| 9 | W10276642 | Screw (Replaces: 4449746) |
|
$ 6.41 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | 8524090 | Switch, Rocker (black) |
|
- | |||||
| 11 | 8523558 | Switch, Rocker (biscuit) |
|
- | |||||
| 11 | 8523557 | Switch, Rocker (white) |
|
- | |||||
| 12 | 8523282 | Control, Range (biscuit) |
|
- | |||||
| 12 | 8523286 | Control, Range (black) |
|
- | |||||
| 12 | 8523285 | Control, Range (white) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WPW10326122 | Cover, Box (Replaces: 3195133) |
|
$ 139.60 | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 17 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.66 |
