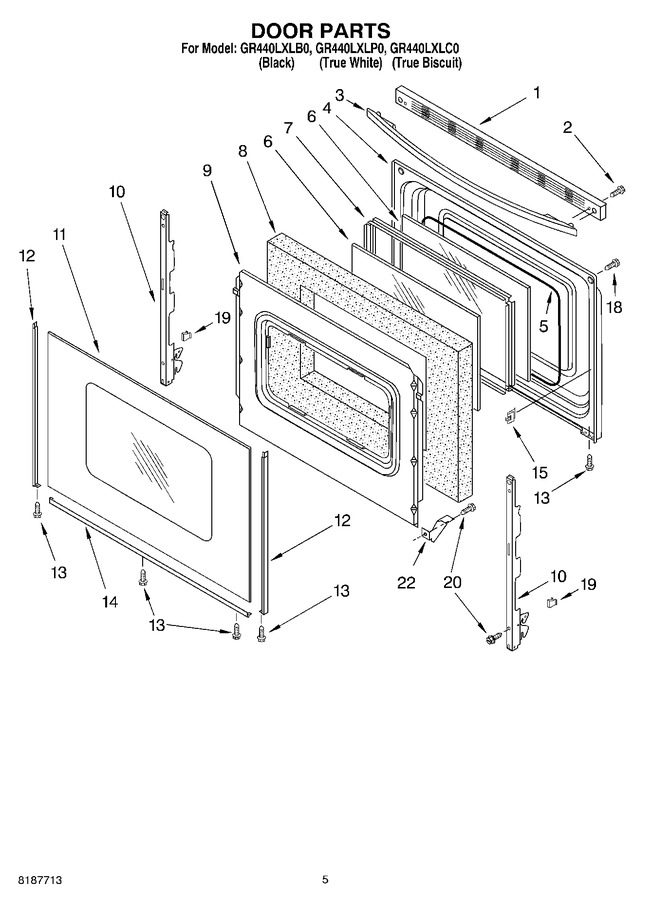

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8522433 | Trim, Door Top (white) |
|
- | |||||
| 1 | 3196819 | Trim, Door Top (black) |
|
- | |||||
| 1 | 8522434 | Trim, Door Top (biscuit) |
|
- | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 11.03 | ||||
| 3 | WPW10202216 | Handle, Door (white) (Replaces: 8522444) |
|
$ 370.67 | |||||
| 3 | WPW10202217 | Handle, Door (black) (Replaces: 3195922) |
|
$ 270.65 | |||||
| 3 | 8522445 | Handle, Door (biscuit) |
|
- | |||||
| 4 | 3186292 | Liner, Door |
|
- | |||||
| 5 | 8522414 | Seal, Window |
|
$ 160.59 | |||||
| 6 | WP8053948 | Glass, Inner (2) (Replaces: 8053948) |
|
$ 178.28 | |||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 90.09 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 101.37 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 3186297) |
|
$ 233.31 | |||||
| 10 | WP8053807 | Hinge, Door (2) (Replaces: 8053807) |
|
$ 101.17 | |||||
| 11 | WP8053834 | Glass, Outer Door (white) (Replaces: 8053480) |
|
$ 291.86 | |||||
| 11 | 8272498 | Glass, Outer Door (biscuit) |
|
- | |||||
| 11 | WPW10118455 | Glass, Outer Door (black) (Replaces: 8053478) |
|
Immediately | $ 332.70 | ||||
| 12 | 8184858 | Trim, Side (black Left Hand) (Replaces: 3195976) |
|
$ 168.85 | |||||
| 12 | 8184860 | Trim, Side (biscuit Right Hand) (Replaces: 8522437) |
|
$ 151.56 | |||||
| 12 | 8184860 | Trim, Side (biscuit Left Hand) (Replaces: 8522440) |
|
$ 151.56 | |||||
| 12 | 8184858 | Trim, Side (black Right Hand) (Replaces: 3195973) |
|
$ 168.85 | |||||
| 12 | 8184859 | Trim, Side (white Right Hand) (Replaces: 8522436) |
|
$ 170.91 | |||||
| 12 | 8184859 | Trim, Side (white Left Hand) (Replaces: 8522439) |
|
$ 170.91 | |||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 14 | 8184860 | Trim, Lower (biscuit) (Replaces: 8272499) |
|
$ 151.56 | |||||
| 14 | 8184859 | Trim, Lower (white) (Replaces: 3195422) |
|
$ 170.91 | |||||
| 14 | 8184858 | Trim, Lower (black) (Replaces: 3195424) |
|
$ 168.85 | |||||
| 15 | 3196025 | Clip, Glass (4) |
|
$ 20.10 | |||||
| 18 | WP179051 | Screw (Replaces: 3196161) |
|
Immediately | $ 8.42 | ||||
| 19 | 3196925 | Clip, Door Stop |
|
$ 9.06 | |||||
| 20 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 22 | 3196794 | Bracket, Window (2) |
|
$ 24.34 |
