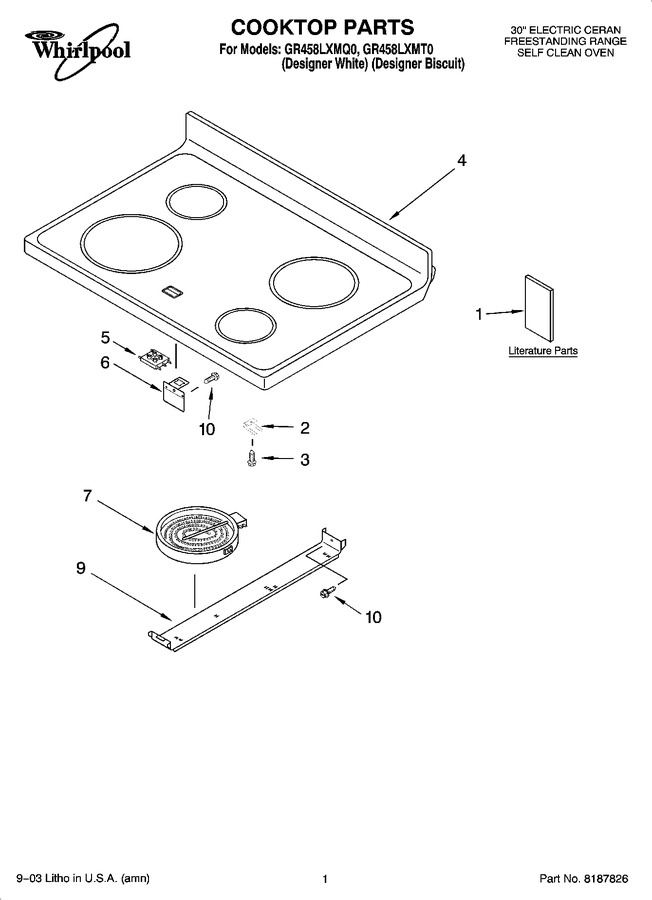

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT9757983 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8523048 | Literature Parts (installation Instr (template)) |
|
- | |||||
| 1 | LIT9756384 | Guide, Use & Care |
|
- | |||||
| 1 | LIT8524264 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 4 | 9755849 | Cooktop (biscuit) |
|
- | |||||
| 4 | 9755850 | Cooktop (white) |
|
- | |||||
| 5 | 8523739 | Light, Indicator (hot Surface) |
|
$ 120.71 | |||||
| 6 | 8523741 | Bracket, Ind Light |
|
- | |||||
| 7 | W10823692 | Element, Surface (2500 W) (Replaces: 8523693) |
|
Immediately | $ 227.59 | ||||
| 7 | W10823696 | Element, Surface (1200 W) (Replaces: 8523692) |
|
Immediately | $ 214.25 | ||||
| 7 | W10823711 | Element, Surface (2400/1000 W) (Replaces: 8523698) |
|
Immediately | $ 204.39 | ||||
| 9 | 8272791 | Bracket, Element |
|
- | |||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 |
