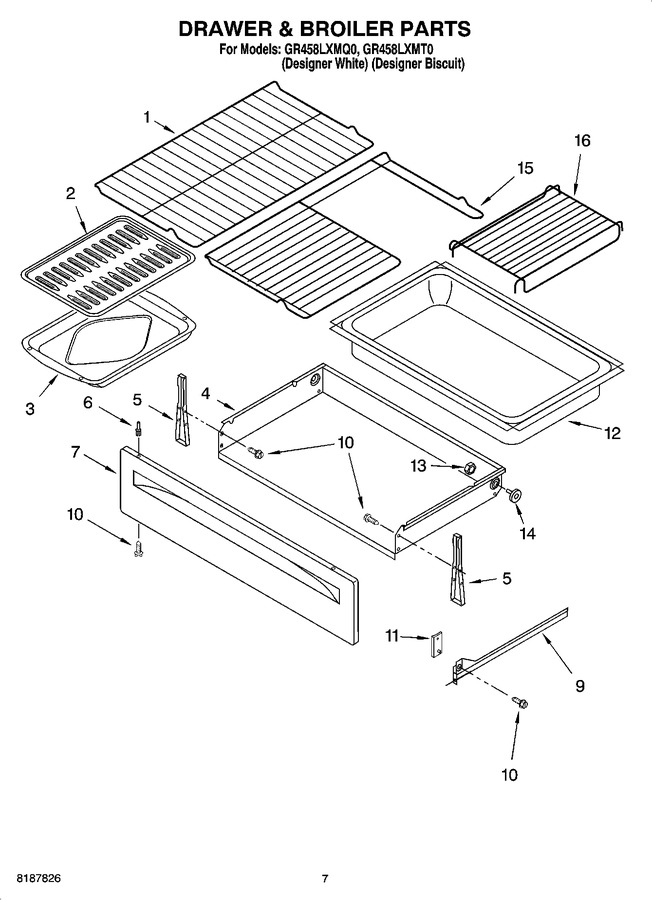

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer & Broiler Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven   (Replaces: 3195710)			Immediately	$ 46.84
2	WP3195996		Grill, Broiler   (Replaces: 3195996)				$ 98.65
3	WP3196076		Pan, Broiler   (Replaces: 3196076)				$ 330.36
4	8272605		Drawer, Storage		Appelez-nous	-
5	W10838990		Bracket, Drawer (2)   (Replaces: 3196816)			Immediately	$ 88.95
6	WP3196814		Rivet, Push (2) (white)   (Replaces: 3196814)			Immediately	$ 11.07
6	3196815		Rivet, Push (2) (almond)		Appelez-nous	-
7	W11230476		Panel, Drawer Front (biscuit)   (Replaces: 8272501)				$ 206.02
7	W11219377		Panel, Drawer Front (white)   (Replaces: 8053339)				$ 212.57
9	8274191		Rail Assy, Drawer (right Hand)		Appelez-nous	-
9	8274190		Rail Assy, Drawer (left Hand)		Appelez-nous	-
10	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
11	8522669		Spacer		Appelez-nous	-
12	8272311		Liner, Drawer		Appelez-nous	-
13	WP487939		Nut   (Replaces: 487939)				$ 8.62
14	814229		Roller   (Replaces: 9751138)			Immediately	$ 56.92
15	WP8274021		Rack, Partial   (Replaces: 8274021)				$ 159.11
16	4396927		Rack, Insert   (Replaces: 8274022)				$ 246.10
	N/A		Miscellaneous		Appelez-nous	-
	350956		Paint, Pressurized Spray (12 Oz.) (almond)				$ 54.01
	8524112		Harness, Wire (cooktop Right)		Appelez-nous	-
	8524070		Harness, Wire (cooktop Left)		Appelez-nous	-
	9757882		Harness, Oven		Appelez-nous	-
	3196696		Clip, Wire Harness		Appelez-nous	-
	8273266		Harness, Wire (door Switch)		Appelez-nous	-
	8522789		Harness, Accbk2		Appelez-nous	-
	8524132		Shield, Wiring		Appelez-nous	-
	3184020		Wire, Ground   (Replaces: 8523279)				$ 86.92
	313660		Clip, Ground Wire		Appelez-nous	-
	WP3196154		Screw, Ground   (Replaces: 3196154)				$ 8.44
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	814381		Pin Kit-dr Removal				$ 11.28
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	8316781		Wire, Black 14 Ga. 150 C		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
	261582		Grease		Appelez-nous	-
	W11244557		Screw   (Replaces: 3196173)				$ 14.29
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 94.14
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Paint, Bulk (1 Qt.) (almond (uncut))		Appelez-nous	-
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	3191048		Cleaner, Glass		Appelez-nous	-
	8273888A		Anti-tip Kit   (Replaces: 3176830)				$ 32.62
