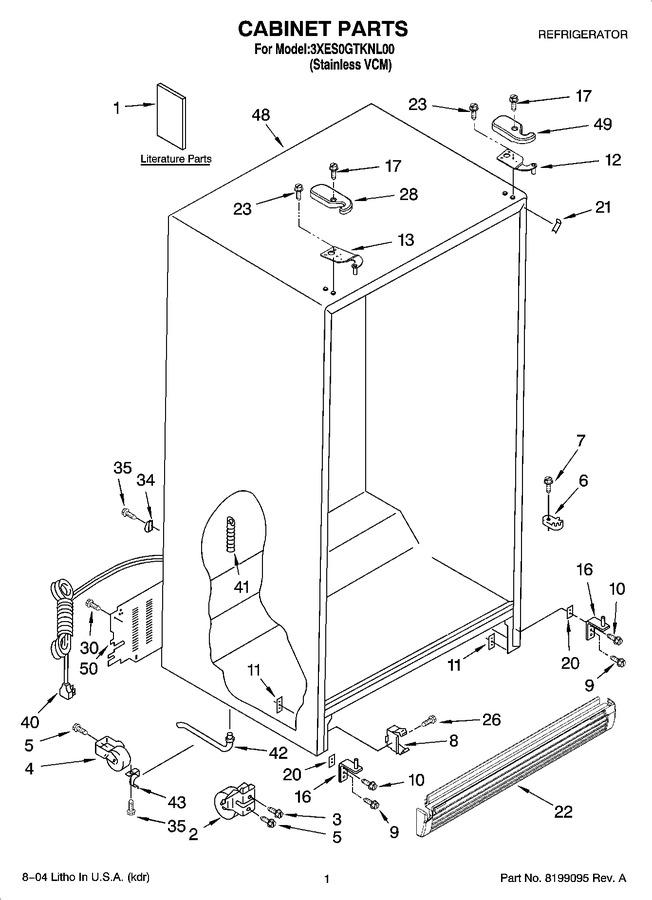

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Air Flow Parts


05 - Freezer Door Parts


06 - Refrigerator Door Parts


07 - Unit Parts


08 - Control Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2221506		Use & Care Guide		Appelez-nous	-
1	2308047		Energy Label		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
7	WP489483		Screw   (Replaces: 489483)				$ 10.87
8	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
9	W10856122		Screw   (Replaces: 3400103)				$ 7.76
10	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 29.09
11	WP2304249		Plate, Screw   (Replaces: 2304249)				$ 14.23
12	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
13	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
16	8201707		Hinge Bottom   (Replaces: 2217075)				$ 88.90
17	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
20	2209697		Spacer, Hinge				$ 41.25
21	2196097		Filler, Wrapper		Appelez-nous	-
22	2198469B		Grille		Appelez-nous	-
23	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
26	WP489478		Screw   (Replaces: 489478)				$ 7.75
28	WP2203407B		Hinge Cover, Fc   (Replaces: 2203407B)				$ 19.52
30	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
34	489348		Clamp		Appelez-nous	-
35	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
40	2205329		Service Cord		Appelez-nous	-
41	W11566763		Drain Ferrule   (Replaces: 940139)			Immediately	$ 50.90
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
48	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
49	WP2203408B		Hinge Cover, Rc   (Replaces: 2203408B)				$ 18.63
50	2214573		Cover, Unit		Appelez-nous	-
