SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Air Flow Parts


05 - Freezer Door Parts


06 - Refrigerator Door Parts


07 - Unit Parts


08 - Control Parts, Optional Parts (not Included)

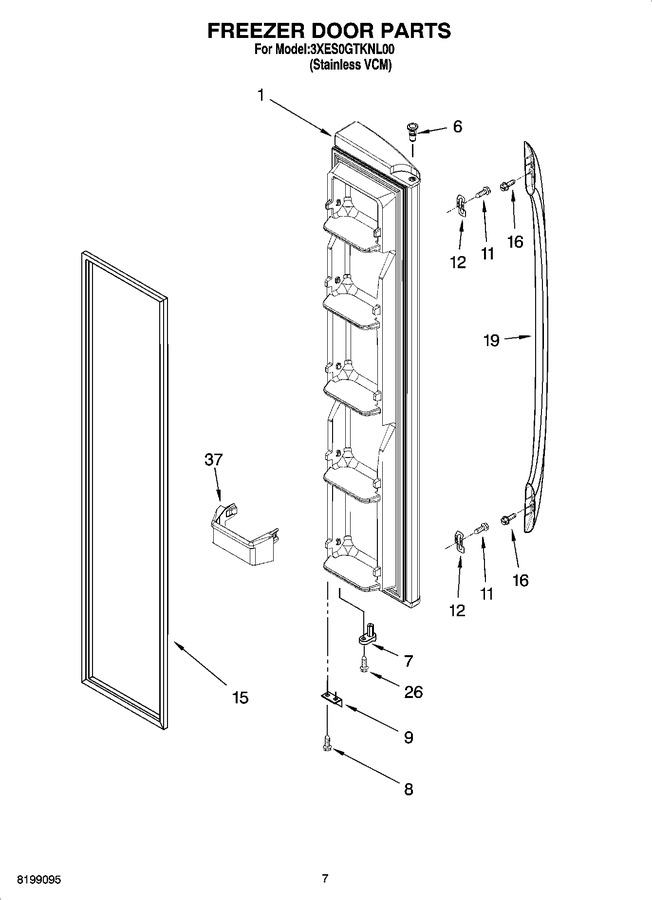

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2305972LB		Freezer Door		Appelez-nous	-
6	WP2182179		Thimble-top   (Replaces: 2182179)			Immediately	$ 6.39
7	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
8	WP489483		Screw   (Replaces: 489420)				$ 10.87
9	2200082B		Bracket, Door Stop				$ 42.44
11	WP489491		Screw   (Replaces: 489491)				$ 6.95
12	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
15	2159080		Door, Gasket Magnetic   (Replaces: 2221312)				$ 325.91
16	8533920		Screw				$ 5.27
19	2305993B		Handle				$ 100.25
26	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
37	2308002		Trivet (5)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
