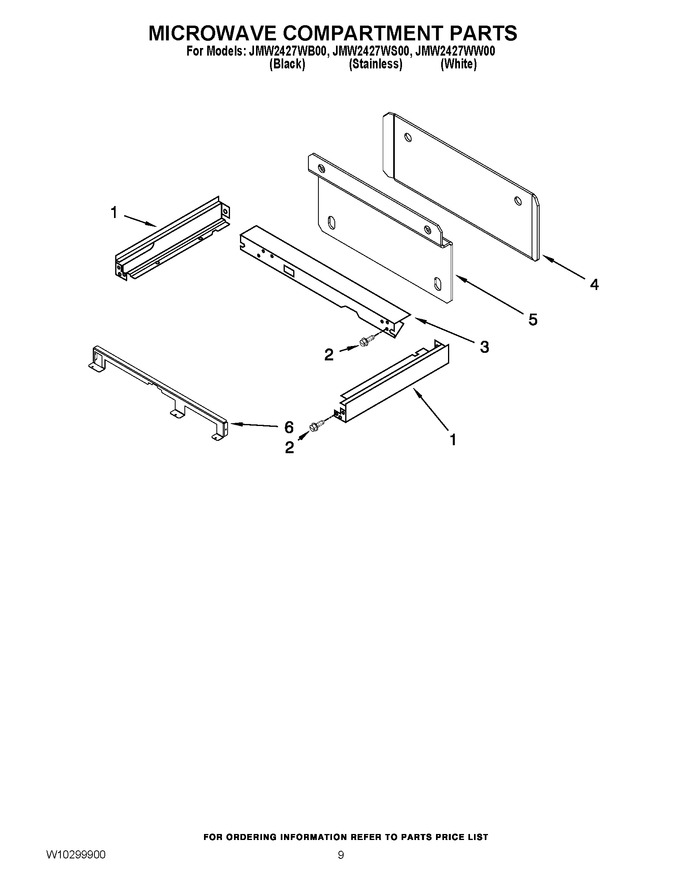

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10209044		Support Rails (left)		Appelez-nous	-
1	W10209045		Support Rails (right)		Appelez-nous	-
2	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
3	W10176195		Support, Rear				$ 50.20
4	W10186985		Guide, Stop		Appelez-nous	-
5	W10186986		Stop, Microwave		Appelez-nous	-
6	W10176196		Support, Front				$ 90.56
