SELECT A DIAGRAM

Diagram for 01 - Oven Parts
01 - Oven Parts

Diagram for 02 - Oven Door Parts
02 - Oven Door Parts

Diagram for 03 - Internal Oven Parts
03 - Internal Oven Parts

Diagram for 04 - Control Panel Parts
04 - Control Panel Parts

Diagram for 05 - Cabinet And Stirrer Parts
05 - Cabinet And Stirrer Parts

Diagram for 06 - Microwave Compartment Parts
06 - Microwave Compartment Parts

Diagram for 07 - Microwave Door Parts
07 - Microwave Door Parts

Diagram for 08 - Top Support And Turntable Parts
08 - Top Support And Turntable Parts

Diagram for 09 - Optional Parts
09 - Optional Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11756840 Button, Plug   (Replaces: 8304588BL) Special Order $ 12.34

2 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

3 W10737653 Door, Microwave   (Replaces: W10288011) Special Order $ 411.83

4 W10267047 Screw Special Order $ 13.47

5 W10176199 Bracket, Handle (stainless) Special Order $ 42.18

5 W10281179 Bracket, Handle (black/white) Appelez-nous -
6 W10277597 Foam, Bracket Appelez-nous -
7 WPW10269424 Glass, Assembly (stainless)   (Replaces: W10269424) Special Order $ 524.16

7 WPW10176230 Glass, Assembly (white)   (Replaces: W10176230) Special Order $ 316.17

7 WPW10176229 Glass, Assembly (black)   (Replaces: W10176229) Special Order $ 367.00

8 W10186760 Handle, Door (stainless) Special Order $ 295.11

8 W10186759 Handle, Door (black) Appelez-nous -
8 W10186758 Handle, Door (white) Appelez-nous -
9 WPW10214168 Badge (black)   (Replaces: W10190724) Special Order $ 85.95

9 W10190723 Badge (white) Special Order $ 111.95

9 WPW10214168 Badge (stainless)   (Replaces: W10214168) Special Order $ 85.95


    View Diagram in Separate Window     Print Icon   Print Part List

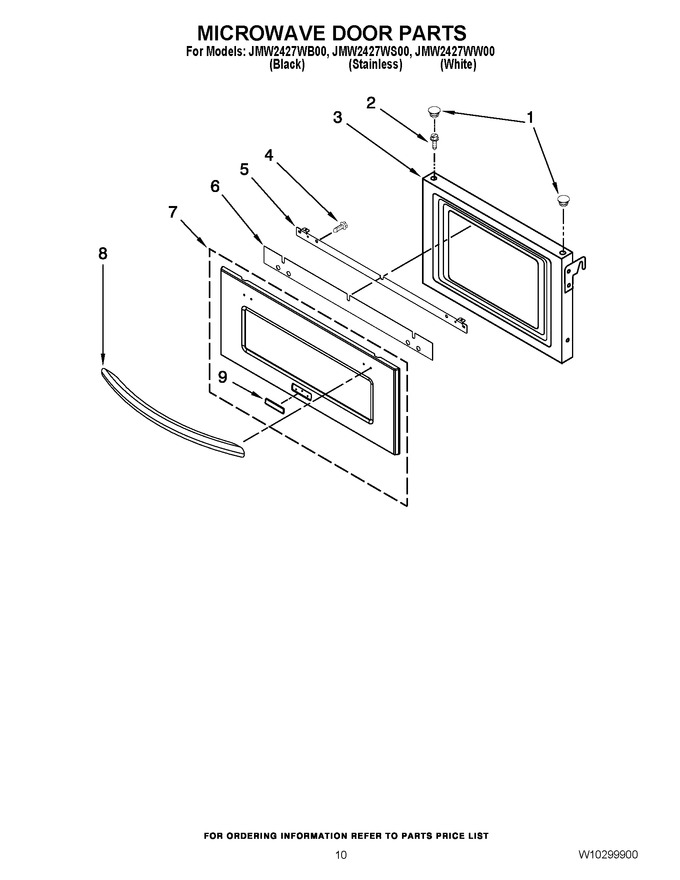

Diagram for JMW2427WB00
