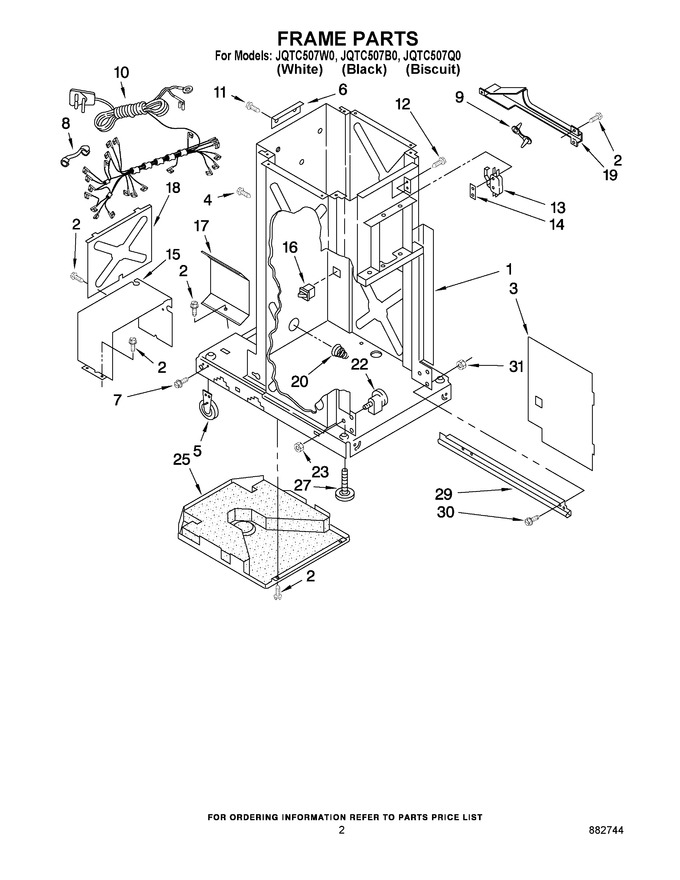

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Frame (not A Serviceable Part)		Appelez-nous	-
2	WP489478		Screw, 8 X 1/2   (Replaces: 489478)				$ 8.18
3	WP9870444		Panel, Inner   (Replaces: 9870444)				$ 101.92
4	WP488234		Screw, 8-32 X 5/16   (Replaces: 777070)				$ 7.08
5	W11023674		Wheel, Leveler (2)   (Replaces: 9870585)				$ 54.05
6	775668		Angle, Top Bracket		Appelez-nous	-
7	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 780034)			Immediately	$ 7.30
8	W11820597		Bushing, Power Cord   (Replaces: 776119)		Appelez-nous	-
9	W11705832		Clamp, Wire   (Replaces: 777035)		Appelez-nous	-
10	9871538		Cord, Power		Appelez-nous	-
11	WP489478		Screw   (Replaces: 489478)				$ 8.18
12	777849		Screw, 6-20 X 1``				$ 7.36
13	WP777811		Switch, Top Limit & Directional   (Replaces: 777811)			Immediately	$ 116.62
14	777850		Nut, Plate				$ 77.13
15	780434		Cover, Motor		Appelez-nous	-
16	W11243179		Switch, Drawer Safety   (Replaces: 4149377)				$ 74.74
17	9870867		Shield, Slide Track (2)		Appelez-nous	-
18	608009		Plate, Motor Cover				$ 39.79
19	4149659		Shield, Harness		Appelez-nous	-
20	WP777180		Spring, Container   (Replaces: 777180)				$ 97.93
22	882688		Bearing, Roller (2)   (Replaces: 4153788)				$ 21.19
23	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 8.53
25	WP780437		Pan-bottom   (Replaces: 780437)				$ 316.61
27	WPW10001130		Foot, Leveler (2)   (Replaces: 775526)			Immediately	$ 7.80
29	WP9870975		Slide, Frame (l.h.)   (Replaces: 9870975)				$ 112.70
29	W11722978		Slide, Frame (r.h.)   (Replaces: 9870976)				$ 141.33
30	WP486754		Screw, 6-32 X 3/8   (Replaces: 777458)				$ 8.01
31	4390387		Nut, 6-32		Appelez-nous	-
